The Dataprobe iP-415-M has been discontinued. For upgrade/replacement
product
information see Dataprobe iP-810
or please call 1-877-586-6654.
Dataprobe iP415
Web/Telnet controlled 8-Outlet Power Strip
These Remote Controlled Power Strips allow
web browser control of eight A/C power outlets. These units connect directly to
10baseT Ethernet and are IP addressable. Each outlet can be independently turned
on, off or cycled for power-on reset (re-boot). 4 outlet models can be easily expanded
to eight outlets. These units use standard NEMA 5-15 North American Line cord and
Outlets.
Dataprobe iP415 Operation
The iP-815 and iP-415 are controlled
from a web browser. Once a connection is established and a security login is approved,
each of the outlets can be controlled by clicking on the appropriate hotlinks. Toggle
and Timed Cycle functions are provided. The status of each outlet is clearly displayed.
The unit can also be controlled from a Telnet client using menu selections.

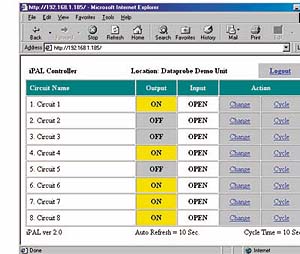

Dataprobe IP-415 Web Browser Diagram
Dataprobe iP415 Remote Reboot Features Benefits:
-
Indicator lamps display status of each outlet
-
User defined names for each outlet
-
Serial Port for Out-of-Band Backup Access
-
Internal Modem Option
Dataprobe iP415 Remote Reboot Specifications:
| Mechanical |
|
| Height |
1.75 in. (4.45 cm.) |
| Width |
19 in. (48.26 cm.) |
| Depth |
8.75 in. (22.23 cm.) |
| Enclosure casing |
EIA rack mount
metal enclosure |
|
A/C Input |
| 15 Amp Models: NEMA
5-15 plug, Six foot line cord 14/3 |
| 20 Amp
Models: NEMA N5-20 plug, Six foot line cord 12/3 |
|
Control Port |
| 10base-T
Ethernet, D9 Serial or RJ11 Line with Modem Option |
| Switched Outlets |
|
| Standard 3
prong NEMA 5-15 connection. 12 Amps
max. per receptacle |
| TOTAL
Max. Current Rating For All Connected Devices |
| 15 Amps
for iP-815 and iP-415, 20 Amps for iP-820 and iP-420 |
