The Dataprobe iP-415 has been discontinued. Please see the
Dataprobe iP815 for
upgrade/replacement product information or
call 1-877-586-6654.
Dataprobe iP415 & iP420 Web/Telnet
controlled 4-Outlet Power Strip
These Remote Controlled Power Strips
allow web browser control of four A/C power outlets. These units connect directly
to 10baseT Ethernet and are IP addressable. Each outlet can be independently
turned on, off or cycled for power-on reset (re-boot). 4 outlet models can be
easily expanded to eight outlets. These units use standard NEMA 5-15 North American
Line cord and Outlets.
Dataprobe iP415 & iP420 Operation
The iP-815 and iP-415 are controlled
from a web browser. Once a connection is established and a security login is approved,
each of the outlets can be controlled by clicking on the appropriate hotlinks. Toggle
and Timed Cycle functions are provided. The status of each outlet is clearly displayed.
The unit can also be controlled from a Telnet client using menu selections.

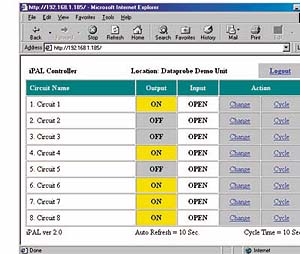

Dataprobe iP415 Web Browser Diagram
Dataprobe
iP-415
Remote Reboot Features:
- Indicator lamps display status of each outlet
- User defined names for each outlet
- Serial Port for Out-of-Band Backup Access
- Internal Modem Option
Dataprobe
iP-415
Remote Reboot Specifications:
| Mechanical |
|
| Height |
1.75 in. (4.45 cm.) |
| Width |
19 in. (48.26 cm.) |
| Depth |
8.75 in. (22.23 cm.) |
|
A/C Input |
| 15 Amp Models: NEMA
5-15 plug, Six foot line cord 14/3 |
| 20 Amp
Models: NEMA N5-20 plug, Six foot line cord 12/3 |
|
Control Port |
| 10base-T
Ethernet, D9 Serial or RJ11 Line with Modem Option |
| Switched Outlets |
|
| Standard 3
prong NEMA 5-15 connection. 12 Amps
max. per receptacle |
| TOTAL
Max. Current Rating For All Connected Devices |
| 15 Amps
for iP-815 and iP-415, 20 Amps for iP-820 and iP-420 |
