External Infrared Receiver; IR range of 10’ to 50’
IR-EYE
Save $16.56

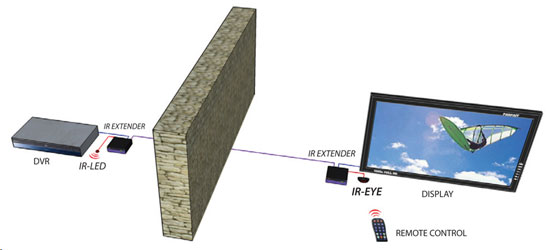

The IR-EYE is designed to work in combination with the IR-LED transmitter (sold separately). The IR-LED transmits the signal from the IR-EYE (via an infrared extender) to the media center device, so that an infrared remote control can be used to control it.
Please note: The SmartAVI IR-EYE is pre-programmed at the factory and works exclusively with SmartAVI equipment. This item will NOT work for non-SmartAVI devices.
Applications
- Audio Visual equipment
- Home appliances
- Infrared remote control toys
- Industrial control devices
- CATV set top boxes
- Optical switches
SmartAVI IR-EYE Specifications
| Mechanical | |
| Height | 0.5 in. (1.27 cm) |
| Width | 0.5 in. (1.27 cm.) |
| Depth | 1 in. (2.54 cm.) |
| Weight | 0.2 lbs |
| Signal Type | TTL |
| Frequency | 20-60 KHz |
| Receiving Range | 10'-50' |

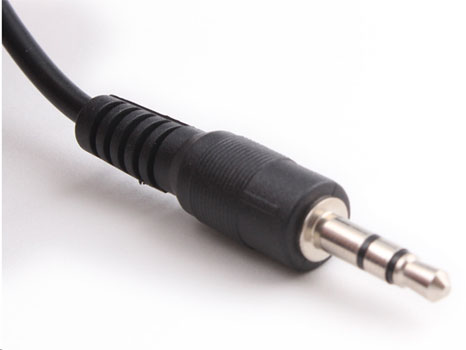

| Connector | 3.5 mm quad mini phone |
| Compatibility | IR-LED Type 3 |
| Approvals | UL, CE, ROHS Compliant |
UPC 813280022071
EAN 0813280022071
