Aten Altusen USB Console Module
KA9272A
The Aten Altusen KA9272A is a USB Console Module with one USB console which controls a local computer and the remote Martix KVM Switch.
Aten KA9272A Features:
- One console module can control a local computer and a matrix KVM switch
- Local-user operation - access any server on the same switch
- Master-user operation - access all servers on the matrix KVM switch installation
- Control servers regardless of differences in monitor, keyboard, and mouse interfaces
- Auto Signal Compensation (ASC) - no DIP switch setting necessary to compensate for distance
- Superior video quality - support resolutions of up to 1024 x 768 within a distance of up to 150m(KM0216/KM0432), 300m(KM0832); DDC2B
- Lifetime flash firmware upgrades

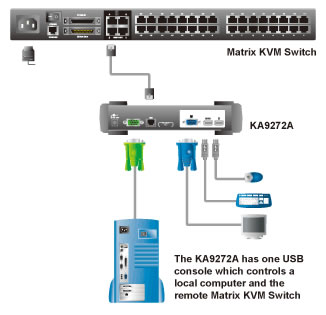

Aten USB Console Module Application Digram
Package Includes:
- 1x KA9272A Console Module
- 1x Custom KVM Cable
- 1x AC Power Adapter
- 1x Quick Start Guide
- 1x Registration Card
Aten KA9272A Specifications:
| Mechanical | |
| Height | 1.65 in. (4.20 cm.) |
| Width | 2.93 in. (7.45 cm.) |
| Depth | 7.87 in. (20.00 cm.) |
| Weight | 1.72 lbs. (0.78 kg.) |
| Housing | Metal |
| Environmental | |
| Operating Temperature | 0 - 50˚C |
| Storage Temperature | -20 - 60˚C |
| Humidity | 0 ~ 80% RH, NC |
| Connections | |
| Computer | 1 |
| Console | 1 |
| Connectors | |
| Console Ports | Keyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (White) |
| KVM Ports | 1 x SPHD-15 Female (Green) |
| Link | 1 x RJ-45 Female |
| Power | 1 x DC Jack |
| Switch | |
| Select | 1 x Pushbutton |
| Normal / Recover | 1 x Slide Switch |
| LEDs | |
| Link | 1 (Green) |
| Local | 1 (Orange) |
Question: Dear, I would like to be sure if this Model is a replace Model of (KA9272) ? Also do you have 4pcs. ready in stock if I order it. Regards.
Answer: Yes, the KA9272A is the direct replacement for the KA9272
Answer: Yes, the KA9272A is the direct replacement for the KA9272
