DVI KVM Over IP Extender Receiver

KE6900R

$1,302.77
Series: KE6900
  • KE6900
  • + Compare Family
Power Method: Standard AC
FREE Shipping on orders over $100

ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen KE6900R DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.

Utilizing expertise in Over IP KVM solutions, the KE6900 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6900 Single View Extender supports one DVI display at each end.

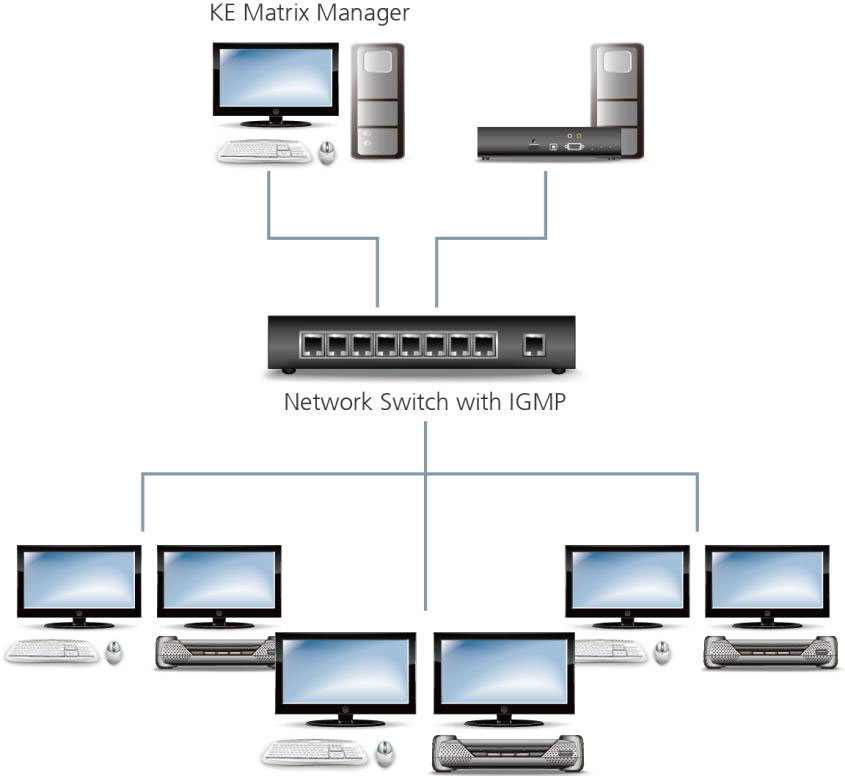

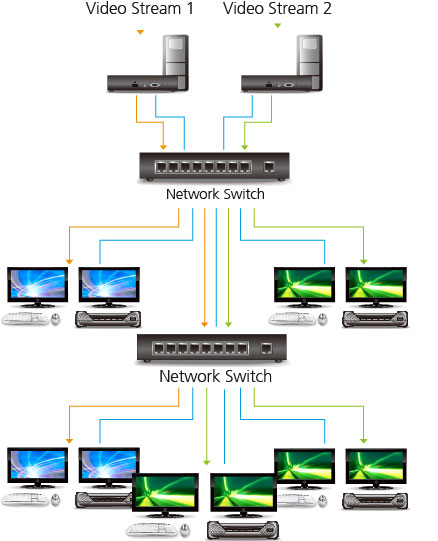

The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers-to-consoles in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).

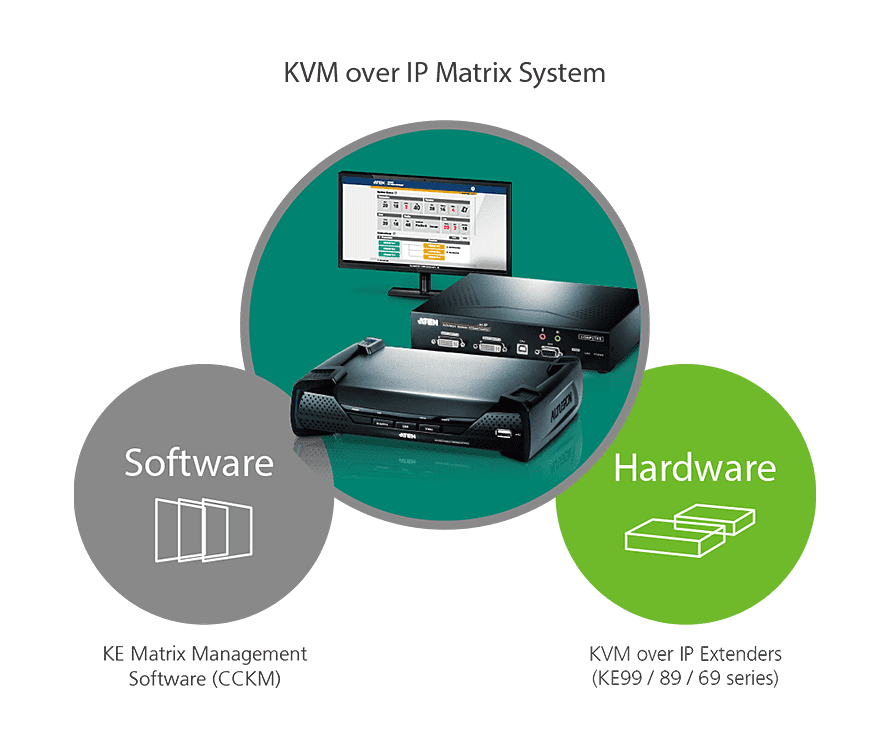

The Matrix Manager software provides advanced features for username/password authentication, autodetection of all KE6900 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS-232 support, and Auto MDIX, the KE6900 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

Aten KE6900R Features

  • Remotely access computers on your KVM installation via intranet
  • Dual console operation - control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
  • RS-232 serial ports - allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
  • Superior video quality - up to 1920 x 1200 @ 60 Hz; 24-bit color depth
  • DVI digital and analog monitor support
  • Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
  • OSD (On Screen Display) on the Receiver configures both units
  • Supports AP GUI operation
  • Remote login security
  • Built-in 8KV/15KV ESD protection and 2KV surge protection
  • Supports stereo speakers and stereo microphone
  • Auto-MDIX - automatically detects cable type
  • Supports widescreen formats
  • Support High-Quality Video streaming
  • Virtual Media Support
  • Hot pluggable
  • Rack Mountable
  • Upgradeable firmware

Aten KE6900R Applications

Extender mode (One-to-One)

This is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-to-one setups can be directly connected by a Cat 5e/6 cable between two units - up to 100 meters (KE89xx & KE99xx models can also optionally be connected via optical fiber cables for distances up to 10 kilometers).

You can also manage point-to-point connections, set up over a LAN with no distance limitations, by assigning each device an IP address.

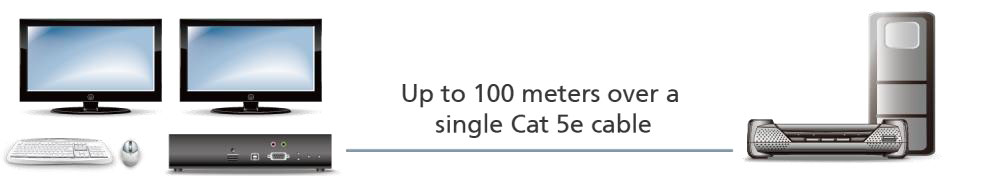

Aten KE6900R Point-To-Point Extension Application Diagram

* Supported via the KE Matrix Management Software (CCKM)


Aten KE6900R Package Contents

Aten KE6900R Back Rear

  • (1) KE6900R DVI KVM Over IP Extender (Receiver)
  • (1) Power Adapter
  • (1) USB KVM Cable
  • (1) User Instructions
  • (1) 3-Year Warranty

Aten KE6900R Specifications

Connectors
Virtual Media 2 x USB Type A Female (White)
Console Ports2 x USB Type A Female (White)
1 x DVI-I Female (White)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
KVM PortsN/A
Power1 x DC Jack (Black)
LAN Ports1 x RJ-45 (Black)
Switches
OSD1x Pushbutton
Video1x Pushbutton
Graphics1x Pushbutton
Reset1 x Semi-recessed Pushbutton
LEDs
Link1 (Green / Orange)
Power1 (Blue)
Local1 (Green)
Remote1 (Green)
Emulation
Keyboard & MouseUSB
Power ConsumptionDC 5V
Emulation
Video ResolutionUp to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0-95% RH, Non-condensing
Physical Properties
HousingMetal
Weight1.25 kg
Dimensions (L x W x H)22.75 x 17.16 x 5.48 cm
UPC / EAN Barcode icon
UPC 672792402869
EAN 0672792402869
