16-Port 19in. Dual Rail CAT5 LCD KVM over IP Switch

KL1516AiN

$3,292.00$2,581.18
Save $710.82
FREE Shipping on orders over $100

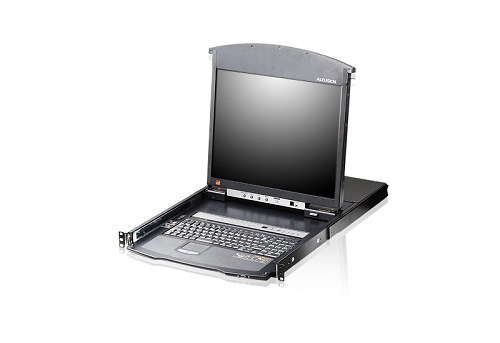

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing. The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to " hide away " when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet - whether that computer is located down the hall, down the street, or halfway around the world.

  • Hardware
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing
  • A single console controls up to 16 computers
  • Daisy chain up to 15 additional KVM switches to control up to 256 computers*
  • One bus for remote KVM over IP access
  • Space-saving RJ-45 connectors and Cat 5e/6 cabling
  • KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • Extra console por - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
  • Multiplatform support: PC, Mac, Sun and Serial
  • Supports external USB mouse
  • Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual Rail - LCD monitor slides independently of the keyboard/touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock - enables the console drawer to remain securely locked away in position when not in use
  • LCD power button helps save energy and prolong displays' life

    * Compatible KVM switches: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516

    Management
  • Up to 64 user accounts - up to 32 concurrent remote logins
  • End session feature - administrators can terminate any running session
  • Adapter ID - stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Remote power control for attached Power Over the NET™ devices
  • Integration with ALTUSEN CC2000 Management software
  • Event logging and Windows-based Log Server support
  • Local Log Event
  • Firmware upgradeable
  • IPv6 capable

    Easy-to-Use Interface
  • Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
  • Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
  • Panel Array Mode™
  • Keyboard broadcast* - keyboard input can be duplicated on all the attached servers

    * Local Console only

    Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
  • IP/MAC Filter support for enhanced security protection
  • Configurable user and group permissions for server access and control

    Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Message board feature allows logged in users to communicate with each other
  • Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
  • On-screen keyboard with multi language support
  • BIOS-level access
  • Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
