The Addlogix KVM-201DVU-2AFC includes two DVI KVMs. First, the Addlogix's
PowerReach is a 2-Port DVI USB KVM with audio support and an integrated USB 2.0
hub. The second unit is PowerReach DVI 2G, FireWire Edition. Similar to the DVI
2G, DVI 2G – FireWire is 2-Port DVI USB KVM with audio and FireWire support, along
with an integrated USB 2.0 Hub.
Both units are designed to control two computers with a DVI display with USB keyboard
and mouse. Both models are equipped with integrated 2Port USB 2.0 hub and audio
support, that allow connected USB devices and audio components (microphone, speakers)
be shared between two computers.
The PowerReach DVI 2G, FireWire Edition further offers FireWire support that allows
high-speed FireWire devices such as external storage drives to be switched and shared
between the two computers. The one-of-a-kind "Independent Switching" makes
peripheral sharing simple! Users can select the computers, the connected USB, FireWire
devices, microphone, and speakers independently, using either front-panel buttons
or keyboard hotkeys.
For example, this special “uninterrupted connection” feature allows the user to
control computer #1, while files are being transferred between a high-speed external
drive that's connected to the KVM and computer #2. Similarly, user can get control
of computer #2, while the speakers connected to the KVM are still playing the files
from computer #1.
Addlogix PowerReach DVI 2G Backside
Addlogix PowerReach DVI KVM Features:
- Control 2 DVI computers using USB keyboard, mouse, and a DVI
flat panel display
- Integrated audio ports allow independent/simultaneous switching
and sharing of microphone and speakers
- Integrated 2-Port USB 2.0 Hub allows independent and/or simultaneous
switching and sharing of high-speed USB 2.0 devices
- FireWire Support (available on the FireWire Edition model) allows
FireWire devices to be shared between 2 computers
- High-Speed USB 2.0 compliant
- UHCI, OHCI USB interface support
- Simple push button and hotkey switching

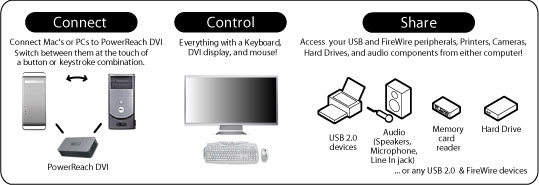

Addlogix PowerReach DVI KVM Diagram
Addlogix KVM-201DVU-2AFC Specifications:
| Mechanical |
|
| Height |
2 in. (5 cm.) |
| Width |
4.2 in. (10.7 cm.) |
| Depth |
8.1 in. (20.6 cm.) |
| Housing |
Metal |
| Size |
Desktop |
| Environmental |
|
| Operating Temperature |
0 ~ 40°C |
| Power |
|
| Adapter |
DC 9V 500mA (required)
|
| Connectors |
|
| Console Connections |
1 |
| Computer Port Connectors |
2 x USB Type B
2 x DVI-I Single Link
2 x 3.5mm audio in/out jack
2 x 3.5mm mic in/out jack
2 x FireWire 6-Pin jack
|
| Console Port Connectors |
2 x USB 1.1 Type A for Keyboard/Mouse
2 x USB 2.0 Type A device hub port
1 x DVI-I Single Link
1 x 3.5mm audio in/out jack
1 x 3.5mm mic in/out jack
1 x FireWire 6-Pin jack
|
| Status LEDs |
|
| Computers |
2 |
| Devices |
2 x USB, 2 x Firewire |
| Supported Computers |
2 |
| Auto Scan Interval |
5 sec |
| Digital Display Resolution |
1920 x 1200 (digital)
|
