Black Box ServView 17" Rackmount LCD with Separate Drawer for Keyboard/Mouse

The Black Box ServView KVT217A is a KVM Drawer with Separate Drawer for Keyboard/Mouse and 17" LCD and is a great choice for any cabinet- or rackmount environment where you need server monitoring but want to keep keyboard and mouse functions locked away.  The keyboard/mouse tray of the KVT217A  features a front-access lock for securing it inside the drawer assembly.

This 17" LCD and Rackmount Keyboard drawer gives you a more space-efficient replacement for a tabletop KVM station in a server room. By using the drawer, you can get rid of that bulky, antiquated CRT monitor, the full-size keyboard, and the cord-attached mouse. It does this by combining a keyboard, mouse, and monitor with a rugged, 2U-high KVM drawer. Because the keyboard has a three-button mini trackball, you don’t need a separate surface for a mouse pad.  This rackmount unit also features a flat-screen, matrix TFT LCD panel which provides clear video at up to 1280 x 1024 resolution. The LCD part of the drawer comprises a membrane inside an aluminum frame that shields the edge of the LCD screen, its LCD inverter, and its analog-to-digital signal converter board.

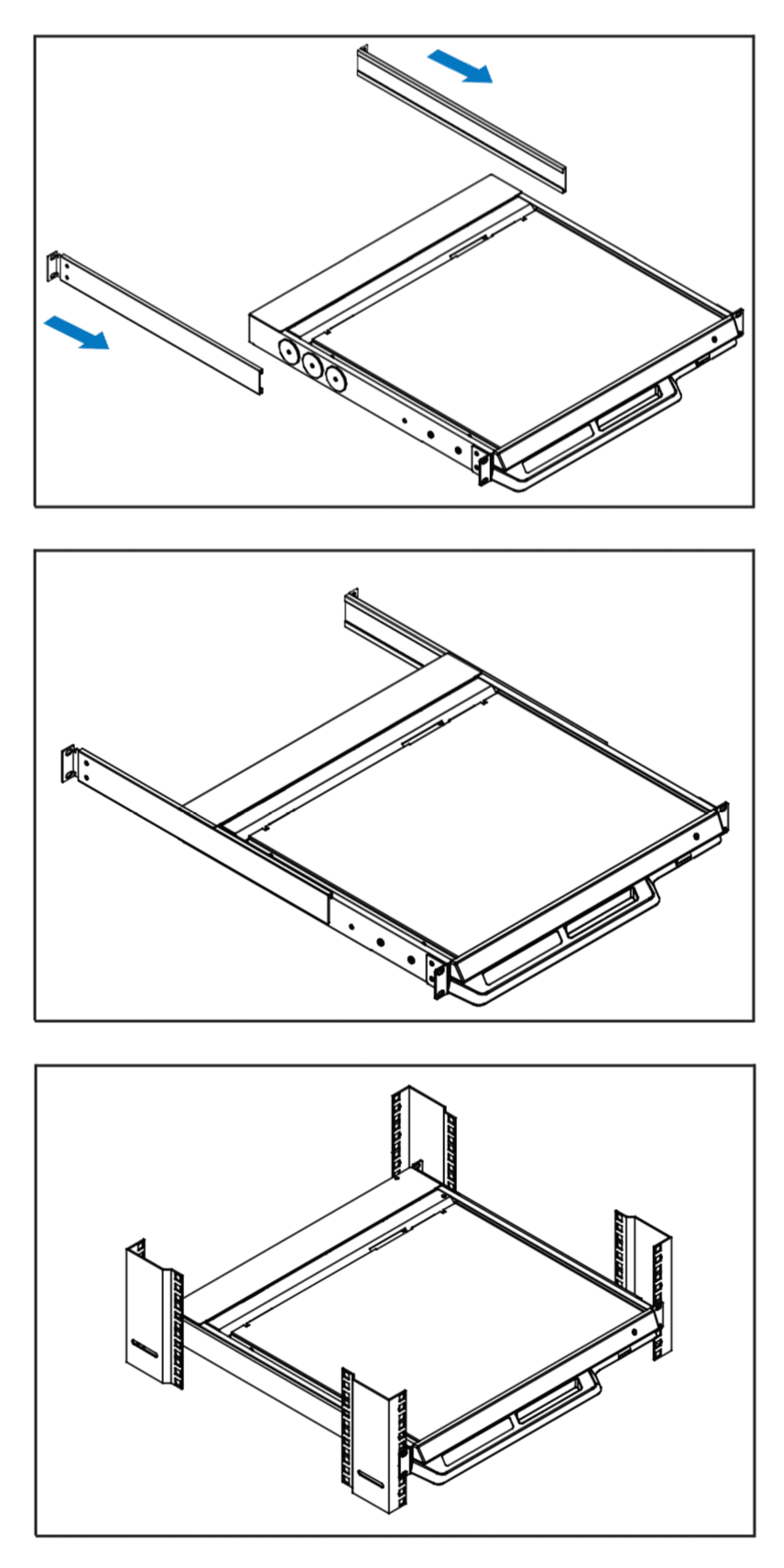

The ServView KVM Drawer with Separate Drawer for Keyboard/Mouse and LCD comes with mounting brackets that you can adjust from 15.4" to 25.6" (39.1 to 65 cm) front to rear for optimal placement of the drawer assembly in a 19" cabinet or 4-post rack.  Outfitted with a rear metal case, the drawer assembly’s sturdy design stands up to heavy and repeated use. The drawer has two independent sliding rails, one for the LCD and one for the keyboard/mouse tray. Each part moves in and out on ball-bearing telescopic slides that ensure smooth, quiet operation.

The KVM drawer has a 12-VDC, 5-amp single power adapter and, for maximum energy conservation, offers low-energy standby and suspend modes through VESA Display Power Management Signaling (DPMS). You also get a three-in-one KVM cable for drawer-to-server connections.

ServView KVT217A Features:

• Stores away quickly in a cabinet or 4-post rack.
• Takes up only 2U of rack space.
• Includes mounting brackets that you can adjust from 15.4" to 25.6" front to rear.
• LCD has a fold-forward design that enables easy viewing.

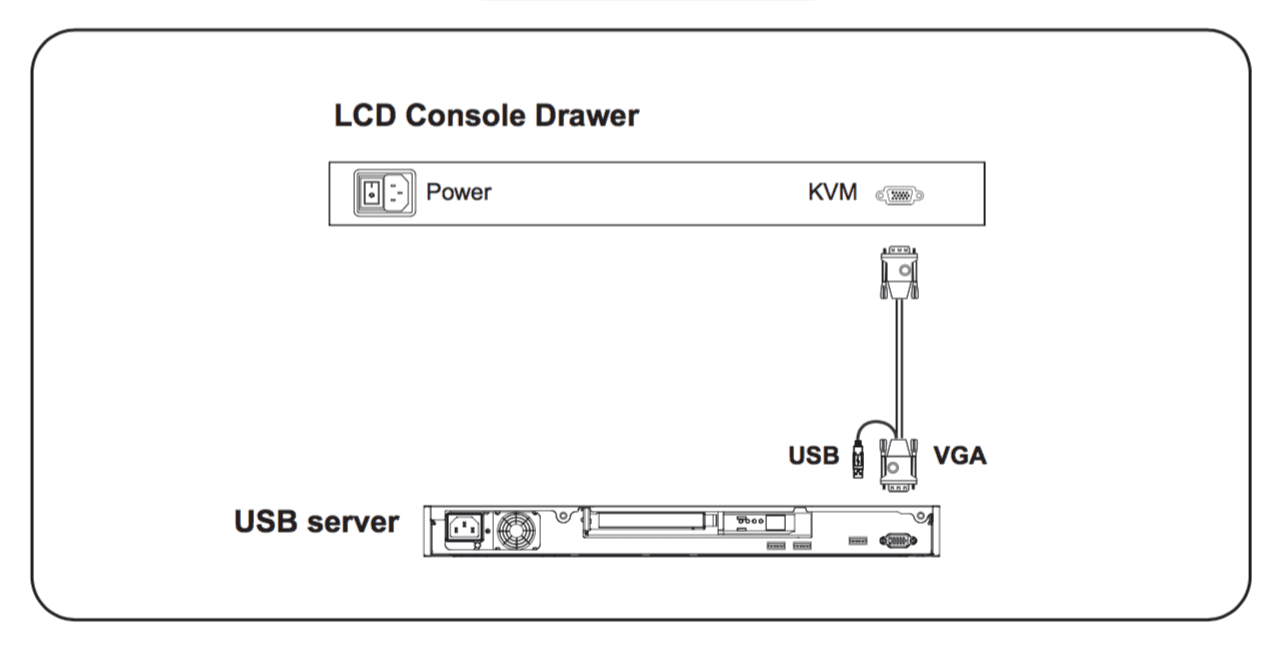

• Keyboard/mouse (PS/2) and LCD video (VGA) connectors plug into the server via an integrated 3-in-1 cable (included).
• Easy to install in a standard 19" cabinet or rack with included mounting brackets.
• Use on-screen display (OSD) controls to easily adjust display resolution and other LCD settings.

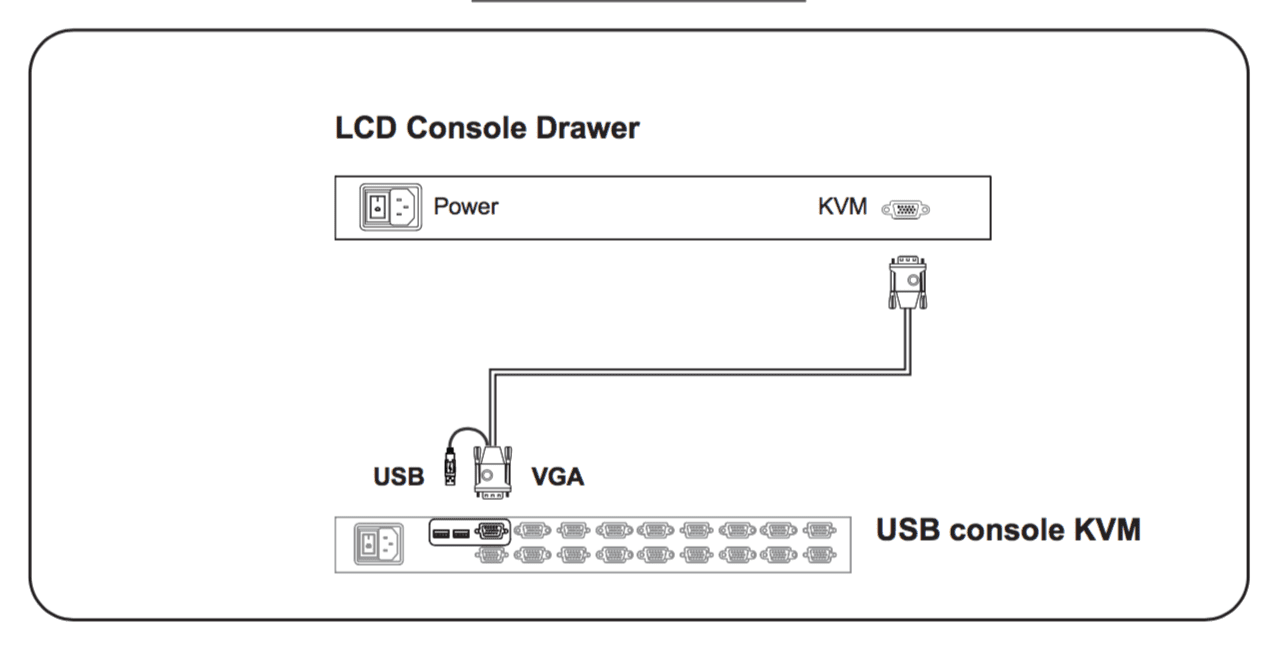

• To control more than one server, just add a ServSwitch™ KVM switch to your ServView™ application.
• Drawer assembly’s sturdy design stands up to heavy and repeated use.

KVT217A Package Includes:

• ServView KVM Drawer with Separate Drawer for Keyboard/Mouse and LCD
• (2) keys for front-access lock
• Power adapter with power cord
• (2) mounting brackets
• (4) fasteners for mounting brackets
• 3-in-1 KVM (PS/2 and VGA) cable
• User’s manual

Black Box KVT217A Specifications:
