Avocent 18.5" Local Rack Access USB LCD Console
LRA185KMM-001
Save $404.12
Discontinued
For upgrade or replacement options: Contact Us
Interface: USB Console + (2) USB Peripheral Pass-Through
Integrated KVM Switch: VGA Video Input Only
Version: Standard
The Avocent LRA185KMM provides the simplicity, efficiency and ease of use to make it the perfect at the rack access point for your data center, server room or computer closet. The Avocent LRA Console combines the efficiency in power and space consumption needed for an emergency access solution with the convenience and user experience of a workstation solution. When connected to a KVM Switch, the Avocent LRA185KMM enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.
The Avocent LRA Console tray provides field proven access within the data center allowing data center operators immediate access to server, network switches and other IT gear from inside the data center with no need for crash carts or other cumbersome equipment. The tray features standard USB and VGA interfaces providing compatibility to a vast number of servers and devices natively. It is compatible with all recent Avocent¨ data center KVM solutions and can easily be used in conjunction with many of the market-leading Avocent¨ access technologies.

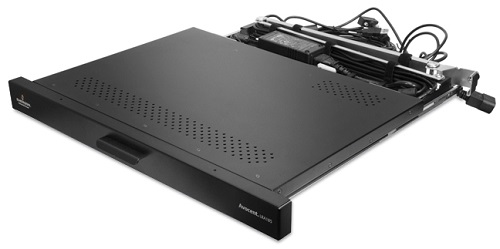

Image showing LRA185KMM closed for storage.
- Large Screen: 16x9 18.5" with variable resolutions for optimal performance
- Form Factor: Trays are easy to access, yet lock securely in and only 1U preserving rack space
- KVM Compatibility: LRA Consoles are compatible with all Avocent¨ data center KVM switches
- On-Screen Display: Easy-to use intuitive design in multiple languages
- Provides conventional access and control in the data center for emergencies as well as extended use
- Ease of use: Convenient, full 103-keys keyboard with full number pad
- Environmentally responsible: Low power usage during operation and standby
- Global availability: Certifications and keyboard language support
- Dual USB 2.0 pass-thru for faster data transmission
- Available in PS/2 or USB keyboard
- Keyboard available in 11 languages - Call 1-877-586-6654 for availability
- TAA compliant version available
LRA185KMM-001 Specifications
| Mechanical | |
| Height | 1.75 in. |
| Width | 19 in. |
| Depth | 21 in. |
| Weight | 22 lbs |
| Environmental | |
| Operating Temperature | 32° to 120° F (0° to 50° C) |
| Storage Temperature | -4° to 158° F (-20° to 70° C) |
| Power | |
| Operating Voltage | Input: 90-264 VAC |
| Input | Consumption 17-20W |
| Supported Hardware | |
| Keyboard and Mouse Connector | USB |
| Video Connector | VGA |
| Hardware Specifications | |
| LCD Resolution | 1366 x 768 @60Hz Standard Resolution 1600 x 1200 @60Hz maximum 640 x 400 @60Hz minimum Refresh range: 55Hz to 85Hz (scaled) |
| Standards | |
| Approved Agency | UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC FCC Class A |
This product is the direct replacement for the Avocent ECS17KMM-001 (AKA: ECS17KMM) rack console.
UPC 636430076157
EAN 0636430076157
Question: What is the key command to change to next server
Answer: Thank you for your inquiry,
The hotkey combination to change servers is dependent on which KVM switch you have connected to the Avocent LRA185KMM-001 rack mount monitor (note, the LRA185KMM-001 does not ship by standard with a KVM switch; you can easily connect a KVM switch by plugging it into the local user ports of the KVM).
Please feel free to respond to this message with your KVM model, or contact your KVM Switches Online sales representative directly.
Question: What type of DVI connector do I need?
Answer: Thank you for your inquiry,
If you are hoping to plug-in a DVI source to the console (i.e. this PN LRA185KMM-001 with no integrated KVM Switch), you will need an active VGA to DVI Converter (i.e. Adder DVA) or an active DVI to VGA Converter (i.e. NTI DVI-VGA).
If you have the console with an integrated KVM, you can simply use MPUIQ-VMCDV dongles for the server interface connections. The MPUIQ-VMCDV dongles feature Single-Link DVI-D connections.
Question: Can you email the CCC certificate and energy efficiency certificate for lra185kmm-001
Answer: Thank you for your inquiry,
Please see files below regarding your requested CCC certificate for the Avocent (by Vertiv) LRA185KMM Console Drawer:
Question: What is the rating of power supply in Watts or Amps and if in Amps, at what voltage? This is for DoN/SPAWAR
Answer: Thank you for your inquiry,
The Power supply (PSU) for the LRA185KMM-001 is rated at 40 watts.
See below for the power rating of the LRA185KMM-001 LCD Tray itself:
Power Usage:
- Maximum: 20 Watts
- Nominal: 17 Watts
- Standby: 0.5 Watts
Power Input
- 90-264 VAC
Apologies for the longer than average delay while we confirmed this information with Vertiv product development team.
Please let us know if there is anything else we can help you with!
Question: Are there replacement rackmount kits?
Answer: Thank you for your inquiry,
See below for replacement rail information for the Avocent (by Vertiv) LRA185KMM-001:
550-494-501 - HARDWARE KIT, RAIL INSTALLATION, PHASE 2
That being said, to receive replacement rails, the unit must still be covered with warranty; the rails are not sold separately.
Please let us know if there is anything else we can ever help you with!
Question: Do you have rails for the LRA185KMM-001 that fit in an APC AR3300?
Answer: Thank you for your inquiry,
The LRA185KMM should fit into the APC AR3300 Rack using the standard rack mount kit. The AR3300 is standard 19" EIA, and has a maximum mounting depth of 41.73 inches (1060 mm). Is this not working in your application?
Alternatively, you may also be interested in the similar Raloy RWX119 or Raloy RF117HD units, which include rails that would work with the APC AR3300 Rack.
Please let us know if there is anything else we can help you with!
Question: What are the three usb cables for?
Answer: Thank you for your inquiry,
One of the USB cables is for the keyboard and mouse of the drawer, and the other two are for for USB Hub passthrough ports at the front of the unit.
Please let us know if there is anything else we can help ever you with!
