Avocent 18.5" USB LCD Console with integrated 8 port IP KVM Switch

LRA185KMM8D-001

$2,475.00

Discontinued
Replaced by: Avocent LRA185KMM8D-G01
Alternative options: Contact Us

Interface: USB Console + (2) USB Peripheral Pass-Through
Integrated KVM Switch: AV3108 - 8 Port, 1 Local / 1 IP User + VGA/DVI/HDMI/DP Input
Version: Standard

The Avocent LRA185KMM8D-001 (previously LRA185KMM8-001) provides the simplicity, efficiency and ease of use to make it the perfect at the rack access point for your data center, server room or computer closet. The Avocent LRA Console combines the efficiency in power and space consumption needed for an emergency access solution with the convenience and user experience of a workstation solution. With the integrated 8 port KVM Switch, the Avocent LRA185KMM8D-001 enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.

The Avocent LRA Console tray provides field proven access within the data center allowing data center operators immediate access to server, network switches and other IT gear from inside the data center with no need for crash carts or other cumbersome equipment. The tray features standard USB and VGA interfaces providing compatibility to a vast number of servers and devices natively. It is compatible with all recent Avocent¨ data center KVM solutions and can easily be used in conjunction with many of the market-leading Avocent¨ access technologies. The integrated 8 port KVM will fit seamlessly into the same 1U the LCD tray providing vastly improved utility while preserving valuable data center real estate.

Please Note: Ships with 8 x MPUIQ-VMCHS VGA/USB dongles.

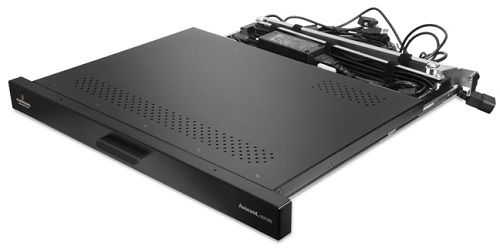

LRA185KMM Closed for storage
Image showing LRA series rack console closed for storage.

  • Large Screen: 16x9 18.5" with variable resolutions for optimal performance
  • Form Factor: Trays are easy to access, yet lock securely in and only 1U preserving rack space
  • KVM Compatibility: LRA Consoles are compatible with all Avocent¨ data center KVM switches
  • On-Screen Display: Easy-to use intuitive design in multiple languages
  • Provides conventional access and control in the data center for emergencies as well as extended use
  • Ease of use: Convenient, full 103-keys keyboard with full number pad
  • Environmentally responsible: Low power usage during operation and standby
  • Global availability: Certifications and keyboard language support
  • Dual USB 2.0 pass-thru for faster data transmission
  • Keyboard available in 11 languages - Call 1-877-586-6654 for availability
  • With integrated 8 Port Digital AutoView 3108 KVM Switch



LRA185KMM8D-001 Specifications

Mechanical
Height 1.75 in.
Width 19 in.
Depth

21 in.

Weight 22 lbs
Environmental
Operating Temperature 32° to 120° F
(0° to 50° C)
Storage Temperature -4° to 158° F
(-20° to 70° C)
Power
Operating Voltage Input: 90-264 VAC
Input Consumption 17-20W
Supported Hardware
Keyboard and Mouse Connector USB
Video Connector VGA
Hardware Specifications
LCD Resolution 1366 x 768 @60Hz Standard Resolution
1600 x 1200 @60Hz maximum
640 x 400 @60Hz minimum
Refresh range: 55Hz to 85Hz (scaled)
Standards
Approved Agency UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC FCC Class A



This item is the direct replacement for the Avocent ECS17KMM8-001 (aka: ECS17KMM8).

UPC / EAN Barcode icon
UPC 636430076430
EAN 0636430076430
Question: Can this new LRA185KMM8 fit into 19-inch rack?? This most concerned form factor I want to confirm.
Answer: Thank you for your inquiry. This unit will mount in a standard 19in EIA rack.

For your reference, here is a link to the LRA185 family manual found on the Emerson website: http://www.emersonnetworkpower.com/documentation/en-us/brands/avocent/documents/manuals/01/5901193501a.pdf.

Question: Would like to know manufacturing origin of this equipment.? Is it possible to get european or Amrican made??
Answer: Thank you for your inquiry. We believe this device is manufactured in Taiwan.

Please contact us at 1-877-586-6654 (or via our online chat feature) to discuss your project in greater detail to find the most appropriate solution.

Question: Does LRA185KMM8-001 come with AV2108 or does that have to be purchased separately?
Answer: Thank you for your inquiry,

The Avocent LRA185KMM8-001 does indeed include the AV2108 KVM Switch.

Question: What is the difference between this newer model LRA185KMM8D-001 and the older model LRA185KMM8-001? Are they the same form factor?
Answer: Thank you for your inquiry,

Effective June 30, 2017, Vertiv stopped distribution of the Avocent AutoView AV2000 KVM switches. After June 30, 2017 the listed SKUs include the new AutoView AV3000 Series KVM switches.

The LRA185KMM8D includes the new AV3108 KVM Switch, rather than the AV2108 included with LRA185KMM8. The 1u rack mount console form-factor remains the same.

Question: the LRA185KMM8D-001 configuration includes the (Monitor, KB/Track pad - as shown in the image), and 8-port RJ45 8-port IP KVM, correct? as well as the description's note of 8 included dongles?
Answer: Thank you for your inquiry,

The LRA185KMM8D-001 configuration includes:
(1) Avocent LRA185KMM Console Drawer
(1) Avocent AV3108 RJ45 8-port IP KVM (Note, built into / integrated in the rear of the LRA185KMM Console Drawer)
(8) MPUIQ-VMCHS VGA/USB dongles
(1) Power cable
(+) 1U rack mounting equipment
(+) documentation

Question: Is the KVM switching done via one-touch keys or a arrow menu/cycle? (on KVM-integrated models)
Answer: Thank you for your inquiry,

The LRA185KMM8D console drawer can be switched using an On-Screen-Display (menu controlled with arrow), or with hotkey (keyboard combinations).

The LRA185KMM8D integrates the Avocent AV3108 KVM switch - you can find more information about the Avocent AV3108 here.


Question: Does the LRA185KMM8D-001 have remote connectivity through IP? Does this console work with Mac computers?
Answer: Thank you for your inquiry,

The LRA185KMM8D integrates the Avocent AV3108 KVM-Over-IP switch which supports up to 1 concurrent IP user.

For the console piece, It would indeed work for macs but for sources you may need to map certain keys like Command to i.e. the start key - this is very easy to do and is built into the Mac OS System Preferences settings - and if you access the KVM via a mac, you would use the Firefox browser on Apple MacOS X Tiger 10.4+

Question: Please inform: Power source, brand, model, country of origin and electric tension. Thanks for your prompt reply!
Answer: Thank you for your inquiry,

  1. What type of power source does it come with? It includes a power adapter with a standard 3 pin connector (see the table below for more information)
  2. Brand? The LRA185KMM8-001 is Avocent branded (manufactured by Vertiv).
  3. Country of origin? According to the vendor, the LRA185KMM8-001 units are manufactured here in the US.
  4. Electric tension? See table below:

    Power SupplyAC 100-240 V, 60 Hz - 50 Hz to DC 12 v/3.3 A
    Power Consumption
    Standard usage17 watts
    Maximum usage22 watts
    Power supply maximum40 watts
    Power savingLess than 1 watt


Please let us know if there is anything else we can help you with!
