| | | Avocent >> Avocent Discontinued >> Avocent LongView LV820-AM | Avocent LongView Multi-Media Cat5 KVM Extender Local |
LV820-AM | | Part # LV820-AM | | Price: | $695.00 | | Sale Price: | $556.00 | | Savings: | $139.00 | |
| | | |
Avocent warranty 1PLV820
$168.89
|
|
|  |
The replacement for this product is the Avocent LV830-AM.
Avocent LongView Multi-Media Cat5 KVM Extender LocalThe Avocent LongView LV820-AM extender extends a keyboard, monitor, mouse,
speakers, microphone and serial port up to 500 feet away from your computer. You
can improve physical and data security and increase working space by separating
your staff from their computers. The Avocent LongView LV820-AM extender allows
you to place connected computers up to 500 feet away with any UTP cable and
still have control of your keyboard, monitor, mouse, speakers, microphone and
serial devices.

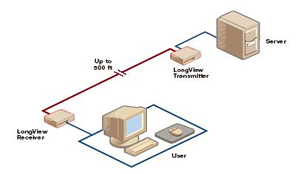

Avocent LongView LV820-AM Function Diagram
Avocent LongView LV820-AM Features and Benefits:
- Lowers installation cost – Actual extension requires just one CAT 5
cable
- Security – Extension allows you to: place your system unit, software and
sensitive data in a secure area minimize tampering and system damage
eliminate unauthorized software installation
- Automatic configuration without jumpers or switches
- AutoTuning technology compensates for varying cable types/lengths, and
adjusts for signal losses each time a switch is made to a server
- Supports multimedia projects through high-quality audio and video
- COM serial port
Avocent LongView LV820-AM Specifications:
| Mechanical |
|
| Height |
1.9" (4.8 cm) |
| Width |
8.1" (20.6 cm) |
| Depth |
4.8" (12.2 cm) |
| Weight |
1 lb. (0.45 kg) |
| Environmental |
|
| Operating Temperature |
|
| Storage Temperature |
|
| Power |
|
| Operating Voltage |
32 to 104 F (0 to 40 C) |
| Power Frequency |
-4 to 122 F (-20 to 50
C) |
| Input |
24 VDC @ 500mA from 115
VAC or 230 VAC adaptor |
| Supported Hardware |
|
| Computers |
Computers using 100
percent IBM compatible, PS/2 compatible peripherals |
| Monitor |
non-interlaced VGA, SVGA,
XGA, 15-pin high density "D" connector |
| Peripherals |
PS/2 or serial mouse,
PS/2 keyboard (150mA max) |
| Standards |
|
| Approved Agency
|
FCC Class A, UL, C-UL,
CE, VCCI Class A |
|
|
|
