1X4 kvm Switch, DVI-I, Dual-link, Dual-Video, USB 2.0

MDM-4T2DDL/A1

$1,195.00$1,045.63
Save $149.37
FREE Shipping on orders over $100

MultiVideo DVI switch is ideal for switching dual-head computer digital or analog video sources simultaneously to up to 4 remote monitors and 1 keyboard and mouse. Crystal clear video at resolutions up to 2560 x 1600 make this unit a perfect addition to any video environment.

Features & Benefits

  • Full dual link DVI video support
  • 1x4 dual-link Dual DVI-I video
  • Resolutions up to 2560 x 1600
  • Select a computer using the front panel switches, hotkeys, or the mouse buttons
  • Switch dual link digital video up to 300 Mpixels/sec
  • Front panel indicator shows the currently active channel, which peripherals are switched to the active channel, keyboard and mouse activity, and power
  • Digital or analogue video support (Analogue requires a DVI to VGA adapter)
  • Supports a wide range of USB 2.0 peripherals (HID and Transparent devices)
  • RS232 serial port for upgrades to the units firmware, synchronizing Vista DVI units so multiple computers/video screens can be switched and accessed
  • Remote serial port switching
  • Flash upgradeable

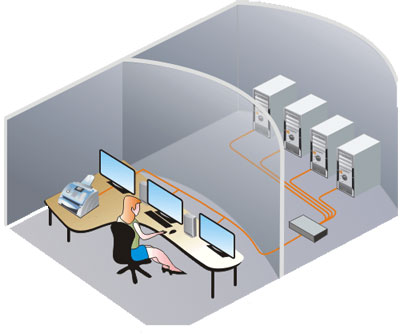

diagram

MultiVideo DVI Specifications

Mechanical
Height 3.94 in. (10. cm)
Width 5.9 in. (14.98 cm.)
Depth 10.24 in. (26 cm.)
Weight5 lbs.
ResolutionSingle-link DVI: 1920x1200
Dual link DVI: 2560x1600
Distance25 ft
ConnectorsVideo: DVI female
Keyboard: USB Type A
Mouse: USB Type A
Audio: 3.5mm female audio jack
USB 2.0 device: 2 USB Type A
USB 2.0 host: USB Type B
Power: Barrel jack
ControlComputer/Mode: Front panel push buttons
Selected computer: LED digit
Selected KVM: Red LED/port
Selected speaker:Red LED/port
Selected USB1: Red LED/port
Selected USB2: Red LED/port
EnvironmentOperating temp: 32°F-104°F (0°C-40°C)
Storage temp: -13°F-140°F (-25°C-60°C)
Relative humidity: 5%-80%, non-condensing
