Please note, the Minicom Classnet Twist Audio is discontinued. For replacement or upgrade options, please contact your KVM Switches Online sales representative at 1-877-586-6654.

For those who demand the finest in interactive computer training, Minicom introduces a new deluxe model, the Classnet Twist Audio. This new Twist Audio features all the benefits of the Classnet Twist original, plus high quality stereo audio capabilities.

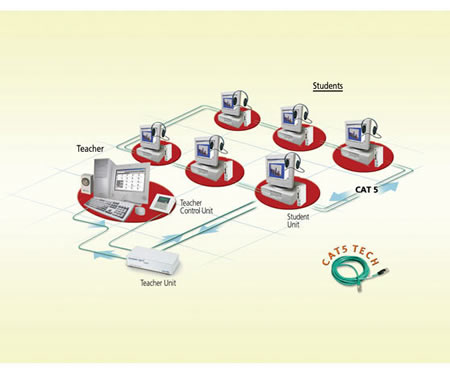

The Twist Audio features advanced interactive computer classroom functionality. It allows instructors to take full control over any student computer to help student solve a problem; broadcast a teacher or student screen to demonstrate a concept; monitor and scan student screens, and gain students? undivided attention by darkening any or all of their screens. And like the Twist original, it features low density CAT5 cabling, which eliminates cable clutter and lengthens control to 300m/1000ft.

The audio feature lets teachers discreetly help individual students without disrupting the entire class; directly address the entire class without outside interference; broadcast audio presentations to the entire class, and transform their computer classroom into a complete multimedia center with the optional multimedia unit.
The Twist Audio's wide range of functions makes it ideal for those seeking a superior quality solution:

  • Schools
  • Colleges
  • Universities
  • Corporate training centers





 Classnet Twist Audio Features and Benefits:

  • Transform your computer classroom - into a complete multimedia center
  • Total teacher control - control keyboard, video & mouse on any computer
  • Complete interactivity - any class member can broadcast screens & stereo sound to any other
  • Multimedia broadcasting - broadcast screen & audio presentations to entire class
  • Individual attention - discreetly help single students through their headsets
  • Grouping - group student computers and broadcast to specific group
  • Global training observation - monitor and auto-scan all student screens
  • Tailor made - buy just the units you need, when you need them
  • Cutting-edge technology - CAT5 cable lets you lengthen up to 300m/1000ft
  • 3 Year Warranty



Maximum number of Student
System Cable
Maximum Distance
63 With Multiloop
2 x Cat5 FTP CAble
110m/360ft, 300m/1000ft with Multiloop
Resolution
Distance
Up to1280 x 1024 @75Hz
Transmission range of 110m/360ft
Platforms
Mouse Support
IBM Compatible,, PS/2
PS/2, Wheelmouse
Operating Systems
Screen and Audio Transfer
Keyboard/Mouse Control
DOS, Windows (3x, 9x, 2000, NT4, ME, XP and later), Linux, QNX, BeOS
Send Students screen and audio to teacher abd vice versa; one to one or one to many
Take control of student's keyboard, mouse and computer
Dark Function
Grouping
Blackout one or all student screens for undivided attention
Group student computers by subject or level and broadcast to specific group
Scan
Resolution
Operation Temperature
Storage Temperature
Sequentially view all Student screens at adjustable interval from 5-99seconds
Up to 1600x1200 @ 75Hz depending on distance
0°C to 40°C /32 °F to 104°F
-40°C to 40°C /-40 °F to 104°F

Cables



Power
Teacher's Unit Student Unit
Screen-HDD15; Keyboard/Mouse-MiniDin6; System Audio in/Out - RJ45; System Video in/out - RJ45 ; Mic/Headphones/SC In/SC Out - Jack Screen-HDD15; Keyboard/Mouse-MiniDin6; System Audio in/Out - RJ45; System Video in/out - RJ45 ; Mic/Headphones/SC In/SC Out - Jack
External Power Adapter 6VDC External power adapter 6VDC
