Avocent DVI-D Matrix Transmitter

MXT5110-DVI-404

$969.00$684.00
Save $285.00

Discontinued
For upgrade or replacement options: Contact Us

Designed as a digital growth platform, the Avocent Matrix product line creates a future-proof environment that customers can expand as new technologies become available, such as higher video resolutions, improved USB standards and video interfaces. It is highly configurable and scalable, and gives broadcasters the flexibility to manage their system now without worrying about what hardware they will need in the future.

With an emphasis on digital file-based workflows in the media and entertainment industry, Avocent Matrix can integrate with the Trellis platform to provide a flexible, reliable and secure content management and delivery capability. This will allow broadcast executives to leverage internal IT capabilities to provide digital content to numerous digital platforms and channels, without multiplying costs.

The Avocent Matrix is easy to implement because of its redesigned management software suite that centralizes configuration, maintenance and user-role setup into one streamlined interface. Compatibility with LDAP and other user authentication frameworks allows the Avocent Matrix to be added easily to existing workflows and setups.

As the transmitters are powered through Power over Ethernet (PoE), the need for power adapters for every transmitter is eliminated. Being able to remove a power supply from each transmitter decreases the number of items in the rack and reduces installation complexity. In addition to the benefits of PoE, transmitters and receivers are fully sealed and passively cooled. This keeps dust and other contaminants away from sensitive components and helps provide a quieter environment and increases reliability for radio or audio production.

Avocent MXT5110-DVI-404 Features and Benefits:

  • Personnel Efficiency - Provide quick, easy access to key business applications and IT resources and increase employee productivity by enabling collaboration and improving work environment
  • Cost Savings - Decrease IT expenditures by sharing costly equipment and applications and reduce time to provision, IT overhead costs and maintenance efforts by centralizing equipment
  • Improved IT Manageability - Enhance physical security by isolating critical equipment and networks and increase availability by reducing downtime due to human error on key business applications
  • Designed to support current and future display standards
  • Silent receivers and transmitters with fanless and ventless cooling
  • Redundant switch power supplies on some models
  • Compatibility with LDAP and other user authentication frameworks allows it to be added easily to existing workflows and setups
  • Advanced Dambrackas Video Compression algorithm enables a pixel-accurate, lossless video experience with lag-free, real-time interaction to computing equipment via any USB enabled device
  • Provides six USB 2.0 connectors (two powered) with an industry-leading combined thoroughput that is up to 66% faster than competitive products
  • Revolutionary centralized software management system
  • Digital and analog video support
  • PoE-powered transmitters
  • Multi-colored back lit LCD allows at-a-glance status identification of transmitters and receivers
  • Instant switching - less than half a second
  • USB 2.0 single line speed is up to 66% faster than the competition

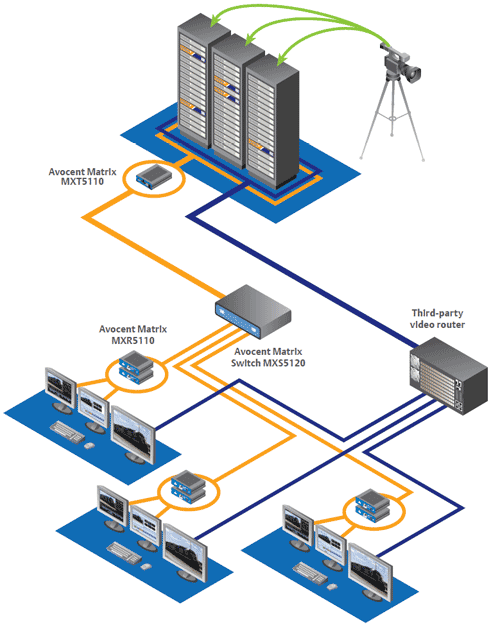

Avocent MXT5110-DVI Diagram
Avocent MXT5110-DVI-404 DVI-D Matrix Transmitter Diagram

Avocent MXT5110-DVI-404 Specifications:

Avocent MX Matrix Manual (PDF)

Mechanical
Width 4.75 in.
Height1.21  in.
Depth6.2 in.
Weight1.4 lbs. (0.64 kg)
Power
Power supplyN/A
Connectors
USB1 x Type B
Microphone1 x 3.5mm stereo
Speaker1 x 3.5mm stereo
Video1 x DVI-D
Direct Connect1 x 8-pin modular

The MXT5110-DVI-404 was formerly known as the MXT5110-DVI. The difference between the two models is the MXT5110-DVI-404 is not TAA compliant.

UPC / EAN Barcode icon
UPC 636430072135
EAN 0636430072135
Question: Do the MXT5110 or MXR5110 use any power?
Answer: Thank you for your inquiry,

They do- The transmitters (MXT5110-DVI or MXT5120-VGA) are powered from the switch over STP CAT 5e/6 (via PoE). The receivers (MXR5110) are powered by an external power supply included in the receiver. Each unit uses 100-240V AC power at 50/60 Hz.

See below for the maximum power draw of each unit in the Avocent MX Series:
PartApplicationMax Input Power Draw
Switch
MXS5120-00120 port with all ports idle51.9 Watts
20 port with 20 Tx (10 W each)251.9 Watts
20 port PSU rating350 Watts
MXS5132-00132 port with all ports idle75.7 Watts
32 port with 20 Tx (10 W each)395.7 Watts
32 port PSU rating2 * 600 Watts
Transmitter
MXT5110-001 7.5 Watts
Receiver (switched mode with USB peripherals)
MXT5110-DVI
OR
MXT5120-VGA
Kbd/mouse7.88 Watts
Kbd/mouse + 2 500 mA USB loads13.83 Watts
Kbd/mouse + 3 500 mA USB loads17 Watts
Receiver (extended mode with USB and transmitter)
MXT5110-DVI
OR
MXT5120-VGA
Kbd/mouse + transmitter23.32 Watts
Kbd/mouse + 2 500 mA loads + transmitter29.57 Watts
Kbd/mouse + 3 500 mA loads + transmitter32.32 Watts

BTU = Power X 3.42
