1U 19" Rack Mount Monitor Sun Keyboard Drawer with TFT LCD

NS119

$1,061.00
Model: 2-Point Lock
Screen Size: 19"
FREE Shipping on orders over $100

The NS119 is a 1U Rackmount Monitor Drawer with 19" LCD, SUN Keyboard with trackball or touch-pad mouse.

Austin Hughes CyberView NS119 DiagramStructural Diagram

NS119 Rackmount LCD Features:

  • Multiple cost efficient integrated KVM Switch options
  • 1U 19" LCD console drawer
  • Direct Support for SUN Micro 1152x900 native resolution
  • Secure remote user access across the world wide web
  • 104-key keyboard with SUN hotkeys
  • Short depth design of 500mm (19.7") only
  • Enhanced aesthetics with molded front handle and two point lock

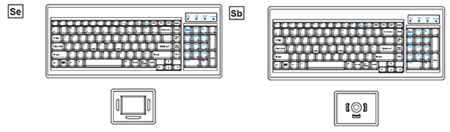

This model comes with either of the following keyboard options:

NS119 SUN Keyboard Options

Optional Configurations (Contact us for availability)

NS119 Package Contents

CyberView NS119 Package Contents
  • (1) NS119 Console Drawer
  • (1) CX-6 6ft DVI-D console cable (or optional CB-6 6ft VGA console cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

NS119 Resources

CyberView NS119 Diagram NS119 Brochure (PDF)
NS119 Manual (PDF)
NS119 Integrated KVM Manuals (Link)

NS119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 19.7 in.
(44 x 442 x 500 mm.)
Console w/ KVM1.73 x 17.4 x 24.4 in.
(44 x 442 x 620 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console27.5 lbs. (12.5 kg)
Console w/ KVM29.7 lbs. (13.5 kg)
Gross Weight
Single Console37.4 lbs. (17 kg)
Console w/ KVM40.5 lbs. (18.4 kg)
Mounting Distance
Single Console20.1 ~ 29.1 in
(510 ~ 740 mm)
Console w/ KVM20.1 ~ 33.1 in
(510 ~ 840 mm)
Console Ports
Video InputVGA + DVI-D single link
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeLED
Direct resolution1152 x 900
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time ( ms )5
Dot pitch ( mm )0.294
Display area ( mm )376.32H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
Safetyc UL us & CE / LVD certified
EnvironmentRoHS2 & REACH compliant

NS119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView NS119 with Matrix CAT6 KVM
Matrix CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
111-NS119-MUIP1613NS119-MUIP3213
121-NS119-MUIP1614NS119-MUIP3214
112-NS119-MUIP1624NS119-MUIP3224
110-NS119-MU1602NS119-MU3202
120-NS119-MU1603NS119-MU3203
130-NS119-MU1604NS119-MU3204

Austin Hughes CyberView NS119 with Combo CAT6 KVM
CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
101NS119-UIP802NS119-UIP1602NS119-UIP3202
110NS119-U802NS119-U1602NS119-U3202
100NS119-U801NS119-U1601NS119-U3201

Austin Hughes CyberView NS119 with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100NS119-1201D

Austin Hughes CyberView NS119 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111NS119-MIP813NS119-MIP1613-
121NS119-MIP814NS119-MIP1614-
112NS119-MIP824NS119-MIP1624-
110NS119-M802NS119-M1602-
120NS119-M803NS119-M1603-
130NS119-M804NS119-M1604-

Austin Hughes CyberView NS119 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101NS119-IP802NS119-IP1602-
110NS119-802NS119-1602-
100NS119-S801NS119-S1601-

Austin Hughes CyberView NS119 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101NS119-IP802HNS119-IP1602H-
110NS119-802HNS119-1602H-
100NS119-801HNS119-1601H-

Austin Hughes CyberView NS119 with PS2 DB-15 KVM
VGA PS/2 KVM		Local UserExtendedIP8-Port16-Port32-Port
100NS119-801NS119-1601-
