Minicom SmartRack16
0SU52061/EN
The Minicom 0SU52061/EN is their SmartRack 16 which is a feature-rich LCD rack drawer with a built-in, integrated 16 port KVM switch. The integration of a CAT5 KVM switch with a rack drawer console provides a unique combination of on-screen server management and at-the-rack control. The integrated switch/rack drawer uses just a single U, saving you valuable rack space. The adjustable dual rail rack drawer allows users to monitor servers on the 17" LCD screen even when the rack door is closed.
The 16 port KVM switch supports multiple platforms (PS/2, SUN, USB). You can control up to 16 servers with the built-in switch and up to 256 servers by cascading it with the Smart CAT5 8/16 Switch. Sophisticated control options provide multi-layer security. CAT5 KVM technology eliminates the need for bulky KVM cables and allows for greater flexibility in cable lengths. Less cable means better ventilation in the rack. Servers can be controlled at distances up to 10m/33ft from the switch, even on neighboring racks.

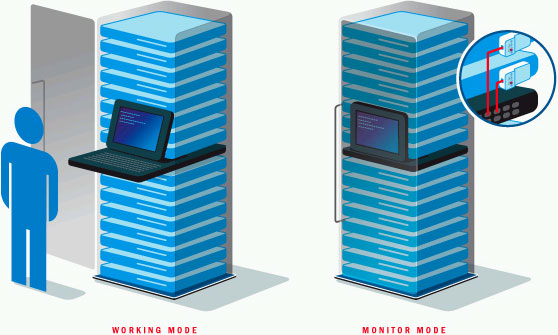

Minicom Smart Rack Diagram
Minicom 0SU52061/EN Specifications:
| Mechanical | |
| Height | 1.7 in. (44 mm.) |
| Width | 17.9 in. (455 mm.) |
| Depth | 22.5 in. (570 mm.) |
| Chassis Construction | Heavy duty steel materials |
| Environmental | |
| Operating Temperature | 0° - 40° degree C/32° -104°F |
| Storage Temperature | -20° - 40° degree C/-4° - 104°F |
| Humidity | 10%~90%RH |
| Power | |
| Source | 100-240 VAC input |
| Consumption | 60W |
| LCD Screen | |
| Display Size | 17" |
| Panel Type | Active Matrix TFT LCD |
| Resolution Capabilities | Maximum Resolution up to 1280X1024@75Hz |
| Pixel Pitch | Supports 0.264mm |
| Viewing Angle | Right-Left view 65 -75 Up-Down View 45 - 60 |
| Contrast Ratio | 350:1 |
| Brightness | White 250cd/m2 |
| Back Light | Four Lamps for Back Light |
| Supported Colors | 16M Colors |
| Integrated KVM | |
| Number of Ports | 16 |
| Operating systems | DOS, Windows (3X, 9X, NT4, ME, 2000, XP, Server 2003) Novell, SUN, Linux, MAC (USB), UNIX, FreeBSD |
| Multi Platform | Support PS/2, SUN and USB |
| System Cables | CAT5 FTP or UTP 2x4x24 AWG solid wire |
| Keyboard Mouse | 106 key PS/2 keyboard with touch pad |
| Sync | 45~80KHZ |
