| | | Raloy Rackmount LCD Monitors >> Rackmount LCD RA17-sun-serial | RALOY 17" Rackmount LCD with SUN Serial keyboard |
RA17-sun-serial | | Part # RA17-sun-serial | | List Price: | $2,390.00 | |
|  |  |
The recommended replacement is a Sun Serial Rackmount Monitor.
1U 17" Rackmount LCD Monitor
(RA17-sun-serial)

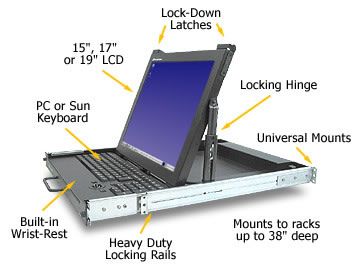

The Raloy 15", 17" and 19" Rack Mount LCD Monitor Drawers are 1U high (1.75") pull out trays equipped with a high resolution, wide viewing angle 15", 17" or 19" LCD. The unit is designed to fit in a standard 19" rack and to be slid out for use. Using a Rackmount LCD
(RA17-sun-serial) in your rack allows you to have more space and use your rack more efficiently - save space...save money.
1U 17" Rackmount LCD Monitor
(RA17-sun-serial) Features and Benefits: -
17" TFT LCD -
250 nits -
500:1 contrast ratio -
1280 x 1024 resolution at 70Hz -
25ms seek time -
11.41" x 15.21 viewing dimensions -
80-degree viewing from all four directions -
Uses only 40watts -
HD-15 video connector -
Sun compatible 8-pin Serial keyboard with trackball -
Fits most 19" racks from 24" to 38" deep -
24v, 48v and 400Hz power supplies offered (optional) -
Built to Mil Spec 901 - 410 - 461 - 810 -
Solaris Ready Certified
1U 17" Rackmount LCD Monitor (RA17-sun-serial) Raloy 1U 17" Rackmount LCD Monitor Sun Microsystems
(RA17-sun-serial) Features -
Test by Sun Microsystems-UK -
Fits all current Sun racks -
Sun-compatible keyboard
w/ Trackball - Optional -
Will synch most Sun resolutions
including 1152x900@66 or 76Hz!
1U 17" Rackmount LCD Monitor
(RA17-sun-serial) Specifications:
| Display |
|
| Display Resolution: |
1024 pixels(H) x 768 lines(V) |
| Active Display Area: |
304.1mm(H) x 228.1mm(V) |
| Displayable Color: |
16.7M colors |
| Horizontal Scan: |
31.5kHz to 80kHz |
| Vertical Refresh: |
56Hz to 75Hz |
| Pixel Frequency: |
135MHz |
| Supported
Hardware | |
| Compatibility: |
IBM & VESA VGA 640 x 350, 70Hz
640 x 400, 70Hz
720 x 400, 70Hz
640 x 480, 60Hz
VESA VGA 640 x 480, 60 / 72 / 75Hz
VESA SVGA 800 x 600, 56 / 60 / 72 / 75Hz
VESA XGA 1024 x 768, 60 / 70 / 75Hz
VESA SXGA 1280 x 1024, 60 / 75Hz
Apple Macintosh 640 x 480, 67Hz
832 x 624, 75Hz
1024 x 768, 75Hz
SunMicro 1152 x 900, 66 / 76Hz |
| Input Signal: |
. Video: analog RGB 0.7 Vp-p
. Sync: separate sync, composite sync, sync. on green |
| Auto-adjustment: |
Yes |
| VESA Mounting Interface: |
VESA Standard 100mm x 100mm |
| I/O Connectors: |
. DC power in
. VGA in D-sub 15 pin |
| User Controls: |
. Multilingual on screen menu adjustments
. External adjustment button
. External brightness adjustment
. Screen image control items: Auto-Adjustment, Contrast, Horizontal Position, Vertical Position, Frequency, Tracking, Display Mode, OSD Off-Time, Language, Text-Graphic, Reset, Volume, Mute, Color setting, Color adjustment (R.G.B) |
| Power |
|
| Power Saving: |
VESA DPMS standard (4 mode) |
| Power Consumption: |
40 watt (max.), < 5 watt (off mode) |
| Standards |
|
| LCD Agency approval: |
FCC-B, CE-B, VCCI-II, BSMI, CCIB, UL, CUL, TUV, CB, TCO' 99 |
| Environmental |
|
| Operating Temperature: |
. 0°~40°C / 32°~104°F
. Humidity: 80% maximum |
| Storage Temperature: |
. -20°~60°C / -4°~140°F
. Humidity: 95% maximum |
|
|
|
