1U 19" Rack Mount Monitor Keyboard Drawer with TFT LCD

RKP119

$1,195.00$1,047.00
Save $148.00
Model: 19"
  • 17"
  • 19"
  • + Compare Family
FREE Shipping on orders over $100

The RKP-119 is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

Austin Hughes CyberView RKP119 Diagram

RKP-119 Features:

  • 1U 19" TFT LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm ( 19.7" )
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access (USB Hub KVM only)
  • 2 post rack mounting available

RKP119 Keyboard Options

The previous keyboard options are available for the RKP-119.

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • DVI-D / HDMI 1.2 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch options
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen: Capacitive 1-pt / Resistive 1-pt

RKP119 Package Contents

CyberView RKP119 Package Contents
  • (1) RKP119 Console Drawer
  • (1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

RKP-119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 19.7 in.
(44 x 442 x 500 mm.)
Console w/ KVM1.73 x 17.4 x 24.4 in.
(44 x 442 x 620 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)
Net Weight
Single Console27.9 lbs. (12.7 kg)
Console w/ KVM30.1 lbs. (13.7 kg)
Gross Weight
Single Console38.1 lbs. (17.3 kg)
Console w/ KVM43.3 lbs. (19.7 kg)
Mounting Distance
Single Console20.1 ~ 29.1 inch
(510 ~ 740 mm)
Console w/ KVM20.1 ~ 33.1 inch
(510 ~ 840 mm)
Console Ports
Video InputVGA
Video OptionDVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time ( ms )5
Dot pitch ( mm )0.294
Display area ( mm )376.32H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC, CE & CCC certified
Safetyc UL us, CE / LVD & CCC certified
EnvironmentRoHS2 & REACH compliant

RKP119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView RKP119 with Matrix CAT6 KVM
Matrix CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
111-RKP119-MUIP1613RKP119-MUIP3213
121-RKP119-MUIP1614RKP119-MUIP3214
112-RKP119-MUIP1624RKP119-MUIP3224
110-RKP119-MU1602RKP119-MU3202
120-RKP119-MU1603RKP119-MU3203
130-RKP119-MU1604RKP119-MU3204

Austin Hughes CyberView RKP119 with Combo CAT6 KVM
CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
101RKP119-UIP802RKP119-UIP1602RKP119-UIP3202
110RKP119-U802RKP119-U1602RKP119-U3202
100RKP119-U801RKP119-U1601RKP119-U3201

Austin Hughes CyberView RKP119 with DVI-D KVM
DVI-D KVM
Local UserExtendedIP12-Port
100RKP119-1201D

Austin Hughes CyberView RKP119 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
111RKP119-MIP813RKP119-MIP1613-
121RKP119-MIP814RKP119-MIP1614-
112RKP119-MIP824RKP119-MIP1624-
110RKP119-M802RKP119-M1602-
120RKP119-M803RKP119-M1603-
130RKP119-M804RKP119-M1604-

Austin Hughes CyberView RKP119 with VGA DB-15 KVM
VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
101RKP119-IP802RKP119-IP1602-
110RKP119-802RKP119-1602-
100RKP119-S801RKP119-S1601-

Austin Hughes CyberView RKP119 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub
Local UserExtendedIP8-Port16-Port32-Port
101RKP119-IP802HRKP119-IP1602H-
110RKP119-802HRKP119-1602H-
100RKP119-801HRKP119-1601H-

Austin Hughes CyberView RKP119 with PS2 DB-15 KVM
VGA PS/2 KVM
Local UserExtendedIP8-Port16-Port32-Port
100RKP119-801RKP119-1601-
Question: Does the RKP119 support Apple products?
Answer: Thank you for your inquiry,

You can indeed use the RKP119 with a MAC. Essentially this is the same as plugging in a Windows keyboard into a MAC; You would simply need to re-map a couple of native MAC keys as seen below (i.e. apple [Command] to [Ctrl]). As far as USB, audio, or other types compatibility with Apple products, you should be good to go out-the-box without any issues.

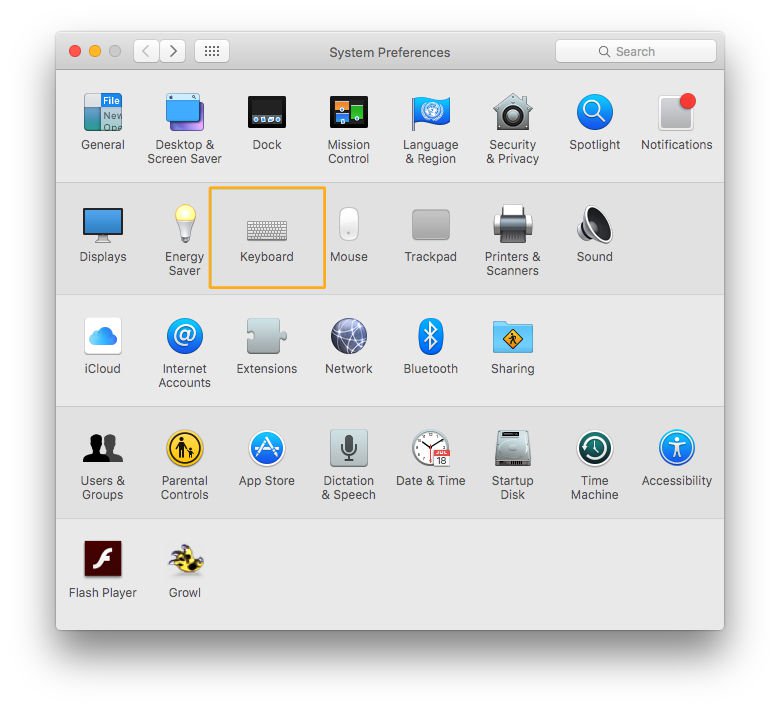

Use Windows Rack Drawer Keyboard with Mac - settings page

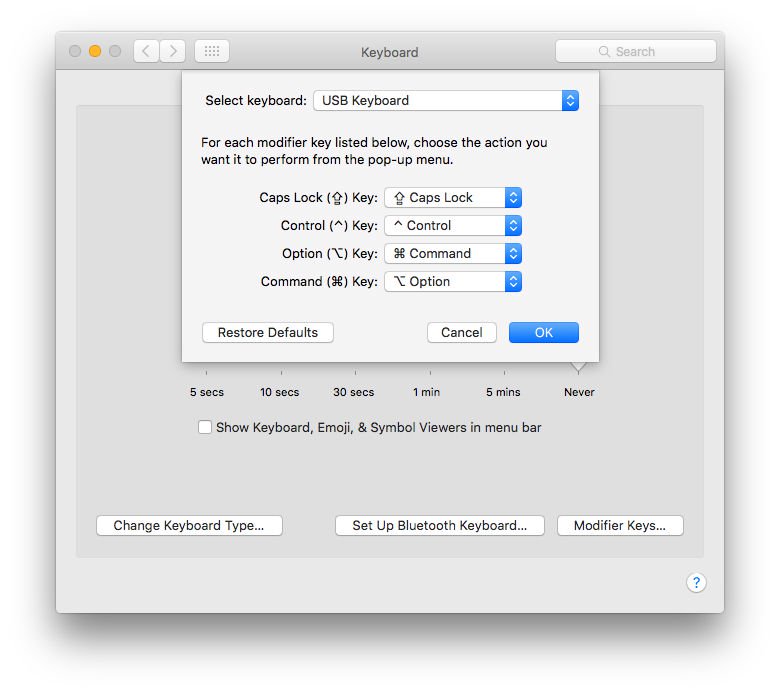

Use Windows Rack Drawer Keyboard with Mac - keyboard settings page

That being said, you may also want to consider this Raloy RF117HDM console drawer (MAC version) which ships with a native MAC keyboard.



Question: Does the 3G/HD/SD-SDI Input Option allow switching between SDI and VGA? What is cost of this option?
Answer: Thank you for your inquiry,

The optional [-SDI] model with SDI + VGA + HDMI 1.3 inputs is an additional +$486.

If you are intending to switch only the video source (keyboard and mouse would not carry through) you could indeed use the RKP119 to switch sources through the On-screen Display (OSD) menu. Please note however, the RKP119 is not really designed for regular switching and does not feature some more advanced switching features i.e. video source emulation to ensure the sources know a display is connected and the resolution stays consistent when switching.

If you need to switch the video and keyboard + mouse control, or would like more advanced switching features, you may want to consider the RKP119 base model + a 2-port VGA KVM + a 3G/HD/SD-SDI to VGA converter.


Question: Does the RKP119 have a 2 pt. lock?
Answer: Thank you for your inquiry,

The Austin Hughes CyberView RKP119 features two manual release latches on the rack mounting brackets to lock the drawer from sliding, but does not feature a separate 2 point lock on the handle.

Here are some very similar models that also feature a 2 point lock on the handle:
Raloy RNX119
CyberView N119

We also have some other alternatives that feature a 2 point lock in different form factor / screen size / video input configurations i.e.:
CyberView L120 - 20"
CyberView F1417 - Ultra-Short Depth 17" 1080P
CyberView K1417 - Ultra-Short Depth 17" 4K display with DisplayPort or optionally HDMI or SDI inputs
CyberView RKP2419 - Dual-Slide Short Depth 19"
CyberView RKP2417F - Dual-Slide Short Depth 17" 1080P

For a recommendation based on your application, please feel free to contact your KVM Switches Online sales representative.

Question: For the CyberView RKP119, is the front USB port available without a KVM? Just want to feed the USB through back to the computer and have the front USB available for devices such as thumbdrive or USB CD drive
Answer: Thank you for your inquiry,

It is! You can get the RKP119 with an optional front USB port (transparent) without an integrated KVM. The part number for this configuration is RKP119-USB / RKP119e-USB (with touchpad) or RKP119b-USB (with trackball).

When purchasing the RKP119 online, you can also now simply select the "[-USB] Transparent USB Port" option from the "Front USB Port" dropdown menu.

Please let us know if there is anything else we can help you with!
