The Cyberview RKP2419-S1601 is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.

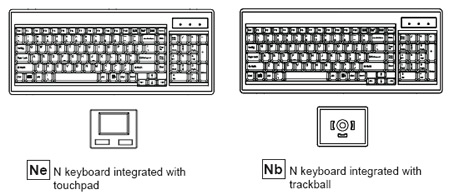

The following keyboard options are available for the RKP2419-S1601:
RKP series provides cost effective for your limited IT budget over using CRT and rack mounting. Also, it will be space saving for your compact environment rack and effective assistant for an administrator to control connected systems
RKP2419-S1601 Features:
2U 19" TFT LCD screen
440mm deep for 15"/ 17" TFT LCD display
480mm deep for 19" LCD display
Two keyboard selections, "e" and "b" support multiple languages
Adjustable mounting brackets from 390 to 700 mm
Slide rails have fixed position to prevent movement of the keyboard & screen
All mounting hardware included
12, 24, 48-Volt DC power supply options
RKP2419-S1601 Specifications:
Mechanical
Height
3.5 in. (8.8 cm.)
Width
17.4 in. (44.2 cm.)
Depth
18.9 in. (48 cm.)
Weight
42 lbs. (19 kg.)
Package Dimensions (H x W x D)
8.7 x 23.6 x 24.4 in. (22 x 60 x 62 cm.)
Package Weight
55 lbs. (25 kg.)
General
Form factor
2U short depth, separate slide-out screen & keyboard
Color
Black
Compatibility
Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Server-side Interface
HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
Rack Mounting
Adjustable ranges from 15.3" to 29.1" (390 to 740mm)
Environmental
Operating temperature
0 to 50 Degree Celsius
Storage temperature
-25 to 65 Degree Celsius
Relative Humidity
90%, non condensing
Shock
50G peak acceleration (11ms, half since wave)
Vibration
58~500Hz/ 0.98G (11min/ cycle)
Power
110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A)
LCD Screen
LCD Manufacturer
Samsung
LCD Origin
South Korea
Display Size
19 inch diagonal
LCD Type
Samsung grade A industrial TFT LCD Panel
Resolution
1,280 x 1,024 with 60 / 70 / 75Hz
Display color
16.7 M
Brightness
300 cd/m2
Contrast Ratio
700:1
Response Time
TR=1.7/ Tf=6.3 ms
Pixel Pitch
0.294 (H) x 0.294 (V) mm
Viewing Angle
85/ 85/ 85/ 85 (L/R/U/D)
OSD Control
Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language
Signal Input
VGA, Analog RGB
Option Video Input
S-video & Composite
LCD MTBF
50,000 hrs
Integrated KVM Switch
KVM port
16 port HD15 female
Port access
Channel button or hot keys selectable
Indicators
Online (green) and selected (red) status LED
Cascade expansion
Up to 128 ports/servers
KB/MS emulation
USB 1.1 Compliant, support hot-plugging
Server-side interface
VGA HD15, analog RGB, USB type A, support hot-plugging
Support platform
MS Windows 2000/XP, Solaris and SCO Unix
KVM Cable
"CB" series USB KVM cable with 6, 10, 15 feet option (16- 6ft cables included)
Cascade Cable
"CBC" series cascade cable to USB KVM switch (sold separately)
