8U 19" Touchscreen Rack Mount LCD Panel
RP-819TS
Save $155.00
| Series | Model |
|---|---|
LCD Display Panel | |
Standard | |
| RP-K617 | 6U 17" 4K |
| RP-F617 | 6U 17" 1080p FHD |
| RP-X617 | 6U 17" 1920 x 1200 |
| RP-717 / RP-819 / RP-920 | 7U 17" / 8U 19" / 9U 20" |
| RP-W719 | 7U 19" 1440 x 900 |
Large | |
| RP-K923 | 9U 23" 4K |
| RP-F821 | 8U 21" 1080p FHD |
| RP-X924 | 9U 24" 1920 x 1200 |
High brightness | |
| RP-HF617 | 6U 17" 1080p FHD |
| RP-HF821 | 8U 21" 1080p FHD |
| RP-H717 / RP-H819 | 7U 17" / 8U 19" 1280 x 1024 |
| RP-HW719 | 7U 19" 1440 x 900 |
Sun display | |
| SP-717 / SP-819 / SP-920 | 7U 17" / 8U 19" / 9U 20" 1152 x 900 |
Split Quad display | |
| RP-F921QD-1080 | 9U 21" 1080p FHD |
| RP-919QD | 9U 19" 1280 x 1024 |
| RP-W819QD | 8U 19" 1440 x 900 |
Rack Monitor Drawer | |
Regular | |
| RP-K117 | 1U 17" 4K |
| RP-F117 | 1U 17" 1080p FHD |
| RP-X117 | 1U 17" 1920 x 1200 |
| RP-117 / RP-119 | 1U 17" / 1U 19" 1280 x 1024 |
| RP-W119 | 1U 19" 1440 x 900 |
| RP-120 | 1U 20" 1600 x 1200 |
Ultra Short depth | |
| RP-K1417 | 1U 17" 4K |
| RP-F1417 | 1U 17" 1080p FHD |
Dual & Triple display | |
| MRP-K17 | 2U 17" 4K |
| MRP-F17 | 2U 17" 1080p FHD |
| MRP-19 | 2U 19" 1280 x 1024 |
High brightness | |
| RP-HF117 | 1U 17" 1080p FHD |
| RP-HW119 | 1U 19" 1440 x 900 |
| RP-H117 / RP-H119 | 1U 17" / 1U 19" 1280 x 1024 |
Sun display | |
| SP-117 / SP-119 | 1U 17" / 1U 19" 1152 x 900 |
| SP-120 | 1U 20" |
Split Quad display | |
| RP-119QD | 1U 19" 1280 x 1024 |
| RP-W119QD | 1U 19" 1440 x 900 |
The RP-819TS is a 8U 19" rackmount LCD monitor with either Responsive or Capacitive Touchscreen capabilities based on business needs. The integrated Touchscreens are available with a USB Controller or a Serial Controller interface. With this package a 6 ft USB cable, Installation Disc and quick reference guide are provided. The RP series provides a cost effective touchscreen rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
RP-819 Touchscreen Rackmount Monitor Features:
- 8U 19" rackmount LCD with HDMI/VGA input
- Ultra high resolution 1600x1200 for RP-920
- Ideal for CCTV security and industrial control
Resistive vs. Capacitive?
Resistive Touchscreen
Touch-sensitive computer displays composed of two flexible sheets coated with a resistive material and separated by an air gap or microdots. Resistive touchscreen technology works well with almost any stylus-like object, and can also be operated with gloved fingers and bare fingers alike.Capacitive Touchscreen
Capacitive touchscreen displays rely on the electrical properties of the human body to detect when and where on a display the user touches. Because of this, capacitive displays can be controlled with very light touches of a finger and generally cannot be used with a mechanical stylus or a gloved hand.
| Model | TRB e-Resistive | TCB e-Capacitive |
| Part Number | RP-819TRB - USB Controller RP-819TRS - Serial Controller | RP-819TCB - USB Controller RP-819TCS - Serial Controller |
| Technology | 5-wire Resistive | Capacitive |
| Touch Point | Single | Single |
| Method | Stylus or Finger | Finger |
| Activation Force | ≤50g / Stylus =R0.8 | ≤50g |
| Durability | 35 million touches | 300 million touches |
| Response Time | 15 ms | 20 ms |
| Optical Transmittance | 80% ± 3% | 93% ± 2% |
| Surface Hardness | 3H | 9H |
| Haze | 8% ± 3% | 7% |
| Glass | 3.2 ± 0.2 mm | 2.8 mm ± 10% |
| Connector | USB Type A (Serial Option Available) | USB Type A (Serial Option Available) |
| Compatibility | Windows 7 / XP / Vista, Linux | Windows 7 / XP / Vista, Linux |

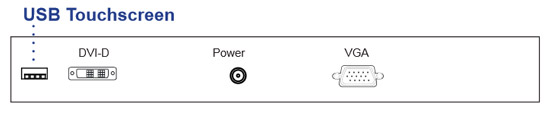

RP819 rear with Touchscreen USB option
Other available options include:
- Serial input for touchscreen
- 3G/HD/SD-SDI Broadcast-grade input
- MCS Multi-display control solution
- S-Video + Composite (BNC) or Audio input
- HDMI and DVI-D (with DV4.4 upgrade)
- DC power: 12V/24V/48V/110~125V
- MIL-type or lockable connector
For Multi-display control, DC power, SDI, and/or serial input for your touchscreen, please call 1-877-586-6654.
RP717 Specifications:
| Mechanical | |
| Height | 14 in. (35.5 cm.) |
| Width | 18.9 in. (48 cm.) |
| Depth | 2.1 in. (5.3 cm.) |
| Weight | 12.5 lbs. (5.7 kg.) |
| Package Dimensions (HxWxD) | 5.1 x 21.2 x 20.8 in. (12.9 x 53.8 x 52.8 cm.) |
| Package Weight | 17.6 lbs. (8.0 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Screen | |
| Display Size | 19" TFT |
| Resolution | 1280x1024 |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing angle (H/V) | 170° x 160° |
| Active area (mm) | 376 x 301 |
| Signal Input | VGA or HDMI |
The products available on this page are part numbers:
RP-819-TRB aka RP819-19TRB
RP-819-TCB aka RP819-19TCB
Answer: Thank you for your inquiry. The RP-819TS touchscreen utilizes a USB interface to communicate with you PC housing the Touchscreen Drivers. For remote applications that use a KVM to extend the source video and K/M, a KVM with a transparent USB port my be necessary to carry the USB signal to the remote console setup. Some KVM's block all USB signals that are not Keyboard or Mouse as well, something to keep in mind. A USB/Video extender unit, such as the ST-C5USBVT, may work as well for your application providing both VGA and USB Extension. For more options, call 1-877-586-6654 or visit the Extenders page and use the options on the left to help narrow down your search. *Note, for Video+USB, you may need to select 'KVM Extender' from the options.
