Raritan 4-Port Secure KVM Switch with 4K dual-link DVI & USB smart card (CAC) - NIAP PP3.0 certified

RSS-104C

$1,114.00$1,048.47
Save $65.53
Ports: 4-Ports
Smart Card (CAC) support: Yes
FREE Shipping on orders over $100
For Government Pricing
Contact Us

Raritan RSS-104C is a 4-port secure KVM switch with 4K dual-link DVI, USB, audio, and smart card (CAC). Raritan Secure Switches (RSS) offer a proven desktop access solution for guarding against cyber intrusion for government and military agencies. The RSS-104C is lab tested and certified to meet the requirements of the latest NIAP Protection Profile for Peripheral Sharing Devices version 3.0. There are four available models, two port and four port, with and without Common Access Card (CAC) authentication. The RSS-104C model supports a single DVI-I (analog or digital) & USB user console with optional audio from the connected computer. The Raritan RSS-104C Secure Switch works in either analog (VGA) or digital video (DVI, HDMI) modes, including 4K Ultra HD, high definition, and standard resolutions.

The NIAP Version 3.0 Protection Profile for Peripheral Sharing (KVM) Switches defines the latest requirements for use of Secure Desktop KVM Switches. These switches allow a user to safely switch between computer systems at different classifications. The new 3.0 Protection Profile (PP_PSS_V3.0) replaces the previous EAL2, EAL4 and Common Criteria regulations with stricter requirements.

Raritan RSS-104C Application Diagram

  • Safely switch between four computers at different security classifications
  • High definition digital video up to 4K UHD @ 30Hz resolution
  • USB keyboard & mouse - PS/2 with optional adapter
  • Common-Access-Card (CAC) reader and keyboard support
  • Surround sound audio - Audio switching is supported via 3.5mm jacks.
  • NIAP 3.0 Common Criteria Certified

Raritan RSS-104C Back

See Detailed Layout

Overview

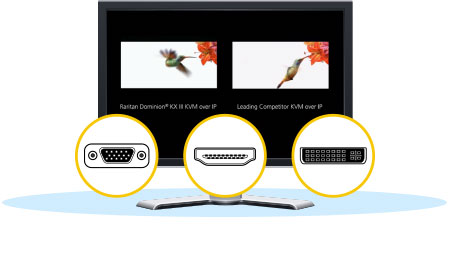

Raritan RSS-104C supports HDMI/DVI/DP/VGA video

Supports Digital (DVI/HDMI/DP) or Analog (VGA) video

RSS-104C MasterConsole Digital supports severs with both analog (VGA) and digital video (dual-link DVI, HDMI, and DisplayPort DP) including 1080P and 4K Ultra HD. Audio is supported via 3.5mm jacks.

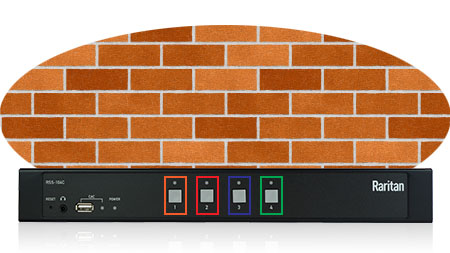

Raritan RSS-104C Multi-level Security Defenses (Physical and Logical)

Multi-level Security Defenses (Physical and Logical)

The RSS-104C meets the 3.0 Protection Profile by strict isolation between computers at different classification levels, tamper resistant operation, firmware locked down to prevent unauthorized modification, and automatically clearing keyboard data.



Raritan RSS-104C NIAP Version 3.0

Lab Tested for the NIAP Version 3.0

The RSS-104C is certified to meet all the requirements of the 3.0 Protection Profile for Peripheral Sharing Switches, which defines strict and comprehensive protections for secure desktop access of systems at multiple classification levels along with the safe use of shared peripherals.



Raritan RSS-104C Secure USB Device Control

Secure USB Device Control

The RSS-104C only connects authorized USB peripherals (keyboards, mice and smart card readers) to prevent inadvertent and insecure data transfers.

Raritan RSS-104C Common-Access-Card (CAC) Support

Common-Access-Card (CAC) Support

RSS-104C supports secure SmartCard / Common Access Card (CAC) user authentication.

Additional Features

Isolated KVM channels

Isolated KVM ports - impossible to transfer data between connected computers at different classification levels.

Internal Power Supply

Built-in, auto-switching power supply.

Chassis Intrusion Detection

If the chassis cover is compromised, the unit becomes inoperable and the LEDs flash.

Fixed Secure Firmware

Firmware cannot be reprogrammed to prevent attempts to alter the logic of the switch.

Automatically Clears Data (Secure Buffer Design)

For added security, keyboard data is automatically cleared to prevent sharing.

Port Switching by push buttons only

KVM switching between connected computers is only by approved means, i.e. no insecure hotkeys.

Ultra HD/4K Resolution

Superior video quality. Maximum resolution is - 3840x2400@30Hz.

RSS-104C Accessories

RSS-104C Package Contents

  • (1) Raritan RSS-104C
  • (1) US Power cord
  • (4) USB A-to-B cables
  • (1) User Guide
  • (1) Warranty Card - 2 Years

Raritan RSS-104C Specifications

Mechanical
Height 1.75 in. (44.5 mm.)
Width 13.14 in. (333.6 mm.)
Depth6 in. (152.4 mm.)
Weight5.02 lbs. (2276 g.)
ConstructionMetal
Connections & Indicators
Computer Connections4
Port SelectionPushbutton Switches (square-shaped)
Console Ports
Keyboard1 x USB Type-A F (White)
Mouse1 x USB Type-A F (White)
Video1 x DVI-I Dual Link F (White)
Audio / Speaker2 x Mini stereo Jack F (Black x x; Front panel)
Computer Ports
Keyboard / Mouse4 x USB Type-B F (White)
Video4 x DVI-I Dual Link F (White)
Audio / Speaker4 x Mini stereo Jack F (Black)
CCID / CAC Card Reader4 x USB Type-B F (White)
Firmware UpgradeNOT Supported
Power1 x 3-prong AC Socket
Keyboard/Mouse EmulationUSB
LEDs
Power1 (White)
On Line / Selected4 Bi-color LED (White - Online / Green - Selected)
CAC (For warning indication)1 (Red / Green)
Switches
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker Switch
Video Resolutions DVI Dual Link: 2560x1600@60Hz; 3840x2160@30Hz
DVI Single Link: 1920x1200@60Hz
DVI-A: 2048x1536@60Hz
Power
Maximum Input Power Rating100-240V AC (50/60Hz), 1A
Maximum Power Consumption12V DC / 0.4A (4.8W)
Environmental
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage temperature-4°F to 140°F (-20°C to 60°C)
Humidity0-80% RH , Non-condensing
CertificationsNIAP Protection Profile version 3.0
Safety: UL,CB
EMC:FCC/CE/VCCI
Mean Time Between Failures (MTBF)> 100,000 Hours
Warranty2 years standard, an additional 3 years of extended protection is available
Question: Are these TAA compliant?
Answer: Thank you for your inquiry,

According to Raritan, "All of Raritan's products meet the requirements of the Trade Agreements Act and are approved to be acquired by the United States Government for use. These products are also compliant with GSA Schedules." http://www.raritan.com/about-us/legal/taa-compliance-statement
