Raloy 1U 19" Widescreen LCD Keyboard Drawer w/ 2-Console 32-Port CAT5 KVM

RW119-MU3202

$3,538.00

Discontinued
Recommended replacement: Raloy RWX119
Alternative options: Contact Us

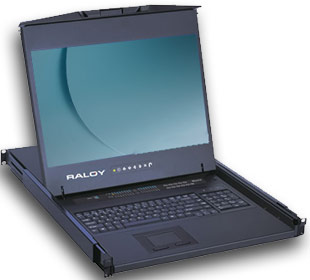

The Raloy RW119-MU3202 rack console features a 19" Widescreen LCD and an integrated 32-port Matrix Multi-User CAT5 / CAT6 KVM switch. The keyboard is a 104 key notepad keyboard available in 13 international languages with touchpad or trackball mouse. Includes 16 USB dongles designed specifically for Raloy KVM Switches (Product ID: RDG-100S). CAT6 cable is not included. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.

Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.

The following keyboard options are available for you to choose from (make sure to select one from the drop down above):

Keyboard with Touchpad MouseKeyboard with Trackball Mouse
E Option: Keyboard with
Touchpad Mouse
B Option: Keyboard with
Trackball Mouse

Raloy RW119-MU3202 Features & Benefits:

  • Widescreen 19" Industrial TFT LCD panel, high resolution 1440 x 900
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Keyboard available in 13 International languages with either touchpad or trackball
  • Enhanced aesthetics with new molded front panel and two point lock
  • Provide a diversity of consoles to access servers independently and simultaneously
  • Use of RJ45 CAT6 interface allows for a higher number of ports in smaller density
  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Advanced user profiles and configurable OSD hot key combinations
  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 32 servers per device in 1U
  • Support DVI-USB, SVGA-PS/2 server interfaces
  • Increased distance of 40m between your server & KVM switch
  • Enhanced CAT6 cable management with remote access over 300m
  • Warranty- 24 months Parts & Labor

NOTE: This Rackmount LCD model is not compatible in older racks with non-universal tapped rails. If you have an older rack with these rails (round holes in the rails, instead of square holes), you may want to consider the RKP119 or S119 series.

W Series Rackmount LCD Diagram
Raloy RW119-MU3202 Rackmount LCD Diagram


Raloy RW119-MU3202 KVM Switch Back View

Raloy RW119-MU3202 Specifications:

Product Dimensions
Product (W x D x H)
17.4 x 23.6 x 1.73 in. / 442 x 600 x 44 mm.
Packing (W x D x H)
22.9 x 29.7 x 6.8 in. / 581 x 755 x 172 mm.
Net Weight
53 lb. / 24 kg.
Gross Weight
72 lb. / 33kg.
LCD Monitor
Diagonal Size
Wide 19" TFT
Max. Resolution
1440 x 900
Brightness
1440 x 900
Color Support
16.7M
Contrast Ratio (typical)
1000:1
Viewing Angle (H x V)
160° x 160°
Display Area
16.6 x 10 in. (408 x 255mm.)
Tr Response Time (ms)
1.3
LCD Panel MTBF (hrs)
50,000
VGA Signal Input
Analog RGB, 0.7Vp-p
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
KVM Switch
Simultaneous Users
1 x local, 1 x CAT5/6 remote
KVM Port
32 x RJ45 connector
Connectivity
DVI-D / VGA connector dongle up to 40 meters (132 feet) CAT6 / CAT5 cable
Local Console
Monitor port: 1 x HDDB15-pin VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse
CAT 5/6 Remote Console
Monitor port: DB-15-pin VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse; Remote i/o: RJ45 via CAT5 / CAT5e / CAT6 cable up to 1,000 feet
Expansion
Up to 256 servers by 8-level cascade
Compatibility
Multi-platform: Mix various PC, SUN, MAC, IBM, HP & DELL servers. Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS
Module Options
Keyboard
104 key notepad keyboard with full numerical pad and multiple keyboard language options. PS/2 or USB support
Mouse
2 button Glidepointª touchpad or trackball with PS/2 or USB support
LCD
BNC + S-Video, DVI-D, DC power, and audio options
Power
Input
100~240VAC, 50 / 60 Hz 0.5A via AC / DC cord
Option DC
12V/24V/48V DC input
Consumption
Max. 24 Watt, Standby 5 Watt
Regulatory Approval
FCC, CE
Environmental
Operation
32° - 122°F (0° - 50°C)
Storage
23° - 140°F (-5° - 60°C)
Relative Humidity
90%, non-condensing
Shock
50G peak acceleration (11ms, half-sine wave)
Vibration
58~100Hz / 0.98G (11ms / cycle)
Package Contains
1 x RW119-MU3202 console, 16 x RDG-100S Dongles, 4 x M3.2*4.5mm screw, 8 x M4*10mm, 1 x Bracket, 1 x User Manual, 1 x Power Adapter, 1 x Power Cord
Additional Receiver Contents
1 x Receiver, 1 x 12V Power adapter, 1 x RCE Combo 4-in-1
