The Raloy RWS119-1602 rack console includes a SUN 1U rackmount featuring a 19" Widescreen Samsung LCD and an 16 port USB Basic DB-15 KVM. The keyboard is a 104 key notepad keyboard available in 13 international languages with touchpad or trackball mouse. Includes 16 combo 2-in-1 KVM cables designed specifically for the Raloy KVM switches (Product ID: RCB-6). This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, and Mouse options in one unit.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.
The following keyboard options are available for you to choose from (make sure to select one from the drop down above):
E Option: SUN Keyboard with Touchpad Mouse
B Option: SUN Keyboard with Trackball Mouse
Raloy RWS119-1602 Features & Benefits:
1U rack console with 19" widescreen Samsung Active Matrix TFT LCD panel, high resolution 1440 x 900
SUN key support including Stop, Cut, Paste, Compose etc
US and UK keyboard language selections with either touchpad or trackball
Enhanced aesthetics with new molded front panel and two point lock
Multi lingual on screen display menu
Advanced user profiles and configurable OSD hot key combinations
Dual power with fail over
UL Approval for LCD Console
Direct support for SUN Micro 1152 x 900 native resolution
USB Basic DB-15 KVM with either 16 ports in 1U
Remote access up to 300 meters
Cascade switches up to 8 levels & mix switches between CAT6 & USB Basic DB-15 KVM
Mix PS/2, USB & SUN with multi-platform switch capability
Cost-efficient remote server management between user & equipment rooms within the building
Warranty- 24 months Parts & Labor
NOTE: This Rackmount LCD model is not compatible in older racks with non-universal tapped rails. If you have an older rack with these rails (round holes in the rails, instead of square holes), you may want to consider the RKP119 or S119 series.

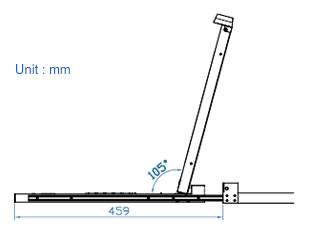

Raloy RWS119-1602 Rackmount LCD Diagram
Raloy RWS119-1602 KVM Switch Back View
Raloy RWS119-1602 Specifications:
Product Dimensions
Product (W x D x H)
17.4 x 23.6 x 1.73 in. / 442 x 600 x 44 mm.
Packing (W x D x H)
22.9 x 29.7 x 6.8 in. / 581 x 755 x 172 mm.
Net Weight
53 lbs. / 24 kg.
Gross Weight
67 lbs. / 30.5 kg.
Samsung LCD
Diagonal Size
Wide 19" TFT
Max Resolution
1152 x 900 (Direct) 1440 x 900 (Native)
Brightness (cd/m2)
300
Contrast Ratio (Typical)
1000 : 1
Viewing Angle (H / V)
160° / 160°
Display Area
16.6 x 10 in.(408 x 255mm.)
Tr Response Time (ms)
1.3
LCD Panel MTBF (hrs)
50,000
VGA Signal Input
Analog RGB, 0.7Vp-p
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
KVM Switch
Simultaneous Users
1 x local, 1 x CAT5/6 remote
KVM Port
16 x DB-15
Connectivity
Combo 2-in-1 KVM cable, up to 6, 10, 15 ft
Local Console
Monitor port: 1 x DB-15 VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse
CAT5/6 Remote Console
Connector: HDDB 15-pin, VGA, Resolution: Up to 1600 x 1200, Input Device: 2 x USB type A for keyboard & mouse, Remote I/O: RJ45 via CAT5/CAT5e/CAT6 cable up tp 300m, Compensation: Auto adjust for cable length
Expansion
Up to 128 servers by 8-level cascade
Compatibility
Mix various PC, SUN, MAC, IBM, HP & DELL servers. Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS
Module Options
Keyboard
104 key notepad SUN keyboard with full numerical pad that incorporates SUN keys including Stop, Cut, Paste, Compose, Copy and Help. US & UK layout. USB support.
Mouse
3 button Glidepoint™ touchpad or trackball with PS/2 or USB support
Power
Input
100~240VAC, 50 / 60 Hz 0.5A via AC / DC cord
Option DC
12V/24V/48V DC input
Consumption
Max. 24 Watt, Standby 5 Watt
Regulatory Approval
FCC, CE
Environmental
Operation
32° - 122°F (0° - 50°C)
Storage
23° - 140°F (-5° - 60°C)
Relative Humidity
5~90%, non-condensing
Shock
10G acceleration (11ms duration)
Package Contains
1 x RWS119- 1602Rack Console, 16 x RCB-6 Combo 2-in-1 KVM Cable, 1 x Receiver Set, 1 x User Manual, 1 x Power Cord, 1 x Auto Switch Power Adapter, 2 x Mounting Bracket, 8 x M6*15mm screw, 4 x M3.2*6mm screw
