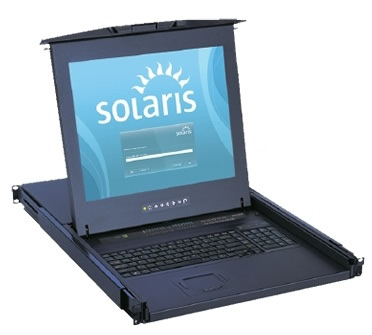

The AH S117-S1601 is a 1U 17" rackmount LCD monitor with 16 port Combo DB-15 KVM switch
and a keyboard with SUN hot keys. This rackmount LCD unit features a 1U slim
design, adjustable brackets and built in LCD OSD to provide effective assistance
for an administrator to control PC system.
AH S117-S1601 Features:
1U 17" TFT LCD screen
The screen will sync with most SUN resolution, including 1152 x900 @ 66
or 76 Hz
1,280 x 1,024 native graphic resolution
Compatible with SUN, Apple, IBM, DELL, HP and USB server
104-keys SUN-compatible keyboard with 3 button trackball supports SUN keys,
including Stop, Cut, Paste, Compose, etc.
Adjustable mounting brackets compatible with SUN rack depth of 24 to 36
inch
All mounting hardware included
Standard USB 16 PC ports KVM
Support VGA resolution up to 1920 x 1440
AH S117-S1601 Package Includes:
(16) 6ft USB KVM Cable
12V 5A remote power adapter
AH S117-S1601 Specifications:
Mechanical
Height
1.75 in. (4.45 cm.)
Width
17.4 in. (44.2 cm.)
Depth
23.6 in. (60 cm.)
Weight
35 lbs. (16 kg.)
Package Dimensions
Height
7.1 in. (18 cm.)
Width
23.6 in. (60 cm.)
Depth
29.9 in. (76 cm.)
Weight
48 lbs. (22 kg.)
Environmental
Operation Temperature
0 to 50 Degree Celsius
Storage Temperature
-5 to 65 Degree Celsius
Relative Humidity
5~90%, non-condensing
Shock
10G acceleration (11ms
duration)
Vibration
5~500Hz 1G RMS random vibration
Power
110 or 220 VAC at 50 or 60 Hz via AC adapter
(12V, 5A)
Rear I/O Connector
Console port, HD15 female
DC power input, Plug-round type
General
Form Factor
1U rack mounting on slide-out
rails
Color
Purple on LCD panel, light
gray on keyboard drawer
Compatibility
Compatible with SUNs, IBMs,
HPs, DELLs and Mix PCs with USB-enable
Support Platform
Solaris, MS Windows 2000/XP,
Linux and SCO Unix
Server-side Interface
HD15 VGA, USB Type A for
KB/MS
Rack Mounting
Adjustable ranges from
15.3" to 33.2" (390 to 845mm)
LCD Screen
Manufacturer/Type
Samsung/ grade A industrial
TFT LCD Panel
Origin
South Korea
Display Size
17" inch diagonal
Resolution
1152x900 with 66 / 76Hz
1,280 x 1,024 with 60 / 70 / 75Hz
Display color
16.2 M
Brightness
300cd/m2
Contrast Ratio
700:1
Response Time
TR=2/ Tf=6 ms
Pixel Pitch
0.264 (H) x 0.264 (V) mm
Viewing Angle
75/ 75/ 75/ 60 (L/R/U/D)
Signal Input
VGA, Analog RGB
OSD Control
Brightness, Contrast, Phase
& Clock, Color, H & V Position,
Auto-tune, Recall & Language
LCD MTBF
50,000 hrs
Input Device
Keyboard
104-key USB keyboard with
built-in SUN keys
[Including stop, cut, paste, compose, copy and help]
Mouse
3-button trackball mouse
Integrated USB KVM Switch
KVM Port
16, HD15 female
KB/MS Emulation
USB 1.1 Compliant, support
hot-plugging
Port Access
Channel button or hot keys
selectable
Indicators
Online (green) and selected
(red) status LED
Server-side Interface
VGA HD15, analog RGB, USB
type A, support hot-plugging
Compatibility
Compatible with SUN, IBM,
HP, DELL and mix PCs with USB-enable
Support Platform
Solaris, MS Windows 2000/XP
and SCO Unix
Cascade Expansion
Up to 128 ports/servers
KVM Cable
"CB" series USB KVM cable
with 6, 10, 15 feet option
Cascade Cable
"CBC" series cascade cable
to USB KVM switch (sold separately)
