4-port Secure EAL4+ KVM, HDMI 1.4 - USB 3.0 Peripheral Port (CAC), Audio

SC845H-001

$1,520.00$1,072.94
Save $447.06

End-Of-Life (EOL)
For stock: Contact Us

Ports: 4 Computer Ports
Video Type: HDMI 1.4
Video Output: Single Monitor
Features: Audio & USB CAC

Vertiv Cybex SC845H Brochure (PDF)
Vertiv Cybex SC845H Manual (PDF)

Cyber threats are in a continuous state of change; often adapting to exploit new technologies before they mature. One strategy for guarding against cyber intrusion is to apply security standards to the most current technologies - even at the desktop. The Emerson Cybex SC800 secure desktop KVM switching portfolio offers a proven solution for guarding against cyber intrusion at the desktop. These switches are designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NAIP protection profile for peripheral sharing devices version 3.0. Emerson Cybex KVM switches deliver strong, effective security management designed to:

The Cybex SC845H KVM switch delivers strong, effective security management designed to tightly control system and network access and deliver transparent security that does not impede user productivity

  • Outstanding security - Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for peripheral-sharing devices.
  • Support for USB Authentication Devices - A dedicated peripheral port supports CAC and additional types of authentication devices, such as facial recognition and fingerprint readers.
  • Discrete processing paths - Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports.
  • Unique NUM Lock, CAPS Lock and Scroll Lock indicators - While the Cybex series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use.
  • Gain true image reproduction and display flexibility - Cybex KVM switches offer the industry's broadest range of video connections. The SC845H supports HDMI 1.4, which delivers resolutions up to UHD 4K (3840X2160 @ 30).

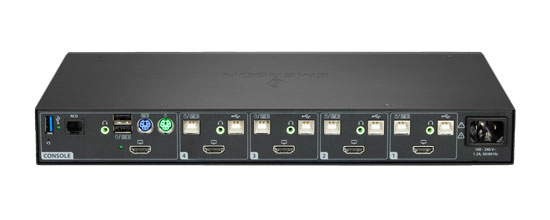

SC845H KVM Back View

SC845H backview

Avocent SC845H-001 Specifications:

Mechanical
Height 1.7 in (42 mm)
Width 13.7 in (342 mm)
Depth5 in (125 mm)
Weight3.2 lbs (1.6 kg)
MicrophoneNo
SpeakerYes
Video1 x HDMI 1.4
MAX ResolutionUHD 4K resolutions up to 3840x2160 @ 30 Hz
Environmental
Operating Temperature32° to 104°F (0° to 40°C)
Storage Temperature-4° to 122°F (-20° to 50°C)
Humidity0-80% RH, non-condensing
Power
Operating Voltage100 to 240VAC
Power Consumption35W Max Internal
Device Support
CertificationsRCM, EU, FCC Class B, VCCI, c-UL
CAC/DPPYes
Warranty3 Years

Avocent Cybex (by Vertiv) SC845H is also known as SC 845H

UPC / EAN Barcode icon
UPC 636430075105
EAN 0636430075105
