4-Port Single-head Secure DP KVM Switch with KB/Mouse USB emulation

SDPN-4S

$972.00$875.00
Save $97.00
Type: KVM Switch
Ports: 4-Ports
Video: DP
Multi-Monitor: Single-Monitor
CAC: No
FREE Shipping on orders over $100

SDPN-4S: Ultra-Secure KVM SwitchingMade In America

The SDVN-4S is a 4-port, single-head DisplayPort Secure KVM switch with support for 4K (3840×2160 @ 30Hz) resolution video.The SDPN-4S-P allows users to control KVM (Keyboard, Video and Mouse) operation on up to four computers with DisplayPort monitors. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.

With the SDPN-4S, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch's functions. Better yet, the SDPN-4S offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SDPN-4S ensures no data is leaked between secure ports and the outside world.

The SDPN-4S has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SDPN-4S.

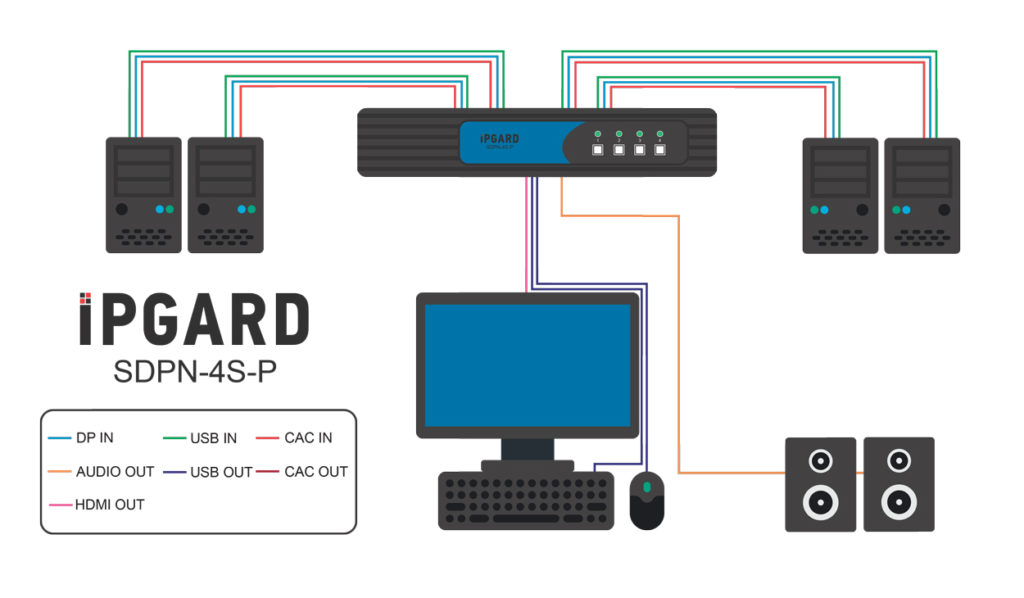

SDPN-4S Application Diagram
SDPN-4S Application Diagram

Key Features

Security Features

  • Non-reprogrammable ROM
  • Active Anti-tamper switches
  • Long-life internal Anti-tampering battery
  • External tamper-evident seals
  • Keyboard, Mouse and Video emulation
  • Absolute isolation - No data leakage between ports
  • Certified by NIAP, the latest Common
  • Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)

> View the NIAP certification and validation documents here.

SDPN-4S Package Includes

  • 1 x 4-Port SH DP Secure KVM w/ Audio, PP 3.0
  • 1 x PS12V2A power supply
  • Cables not included:
    • Per target system: 1 x DP cable, 1 x USB Type-A to Type-B cable, 1 x 3.5mm Stereo audio cable

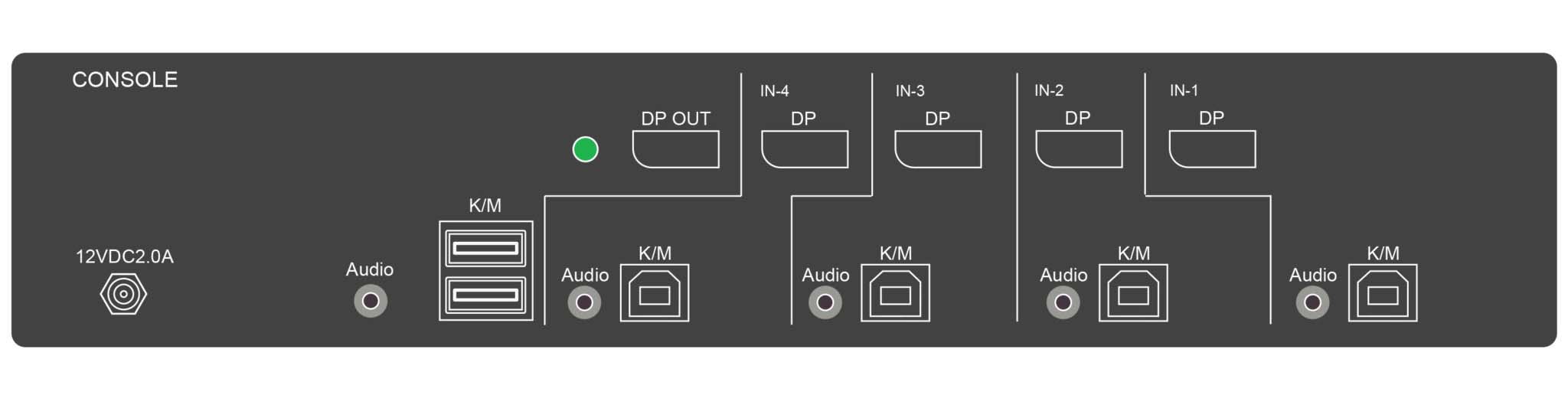

Rear view of the SDPN-4S
SDPN-4S Back

SmartAVI SDPN-4S Specifications

Learn More: SmartAVI SDPN-4S Brochure (PDF)
SmartAVI SDPN-4S Manual (PDF)

VIDEO
FormatDP
Input Interface(4) DP
Output Interface(1) DP
ResolutionUp to 4K (3840 x 2160 @ 30Hz)
DDC5 volts p-p (TTL)
Input EqualizationAutomatic
Input Cable LengthUp to 20 ft.
Output Cable LengthUp to 20 ft.
USB
Input Interface(4) USB Type-B
Output(2) USB 1.1 Type A for KM Devices
EmulationKeyboard & Mouse
AUDIO
Audio Input(2) 3.5mm stereo audio
Audio Output(1) 3.5mm stereo audio
CONTROL
Front PanelFront panel SELECT buttons
OTHER
PowerExternal 100-240 VAC/12VDC2A @ 24W
Dimensions12.6" W x 1.76" H x 6.69" D
Weight4.2 lbs
ApprovalsNIAPP PP 3.0, UL, CE, ROHS Compliant
Operating Temp.+32 to +104°F (0 to +40°C)
Storage Temp.-4 to 140°F (-20 to +60°C)
HumidityUp to 80% (No Condensation)
