HDBaseT Dual DVI-D, USB,RS232, Audio, CAT5/5e/6 Transmitter

SDX-TX2P

$650.00$506.49
Save $143.51
FREE Shipping on orders over $100
smartavi_madeinusa

The SmartAVI SDX-2P DVI Transmitter uses HDBaseT technology and is capable of sending dual DVI-D signals up to 400 feet over two conventional and inexpensive CAT5/5e/6 cables.

The SDX-2P also has USB keyboard, mouse, audio and RS232 extensions, giving you the ability to control your displays or devices remotely.

Applications

  • Security
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio
  • PC KVM Extension

Features

  • Extends dual DVI-D up to 400 feet (120m) from the source
  • HDCP Support
  • Supports up to 1920x1200 digital video resolution
  • Automatic DDC Learning
  • USB Keyboard and Mouse extension
  • Uncompressed Video HDBaseT
  • RS232 extension allows for remote control of displays
  • External power adapter for transmitter and receiver unit
  • Supports Stereo Sound
  • Compatible with Windows, Mac and Linux Operating Systems

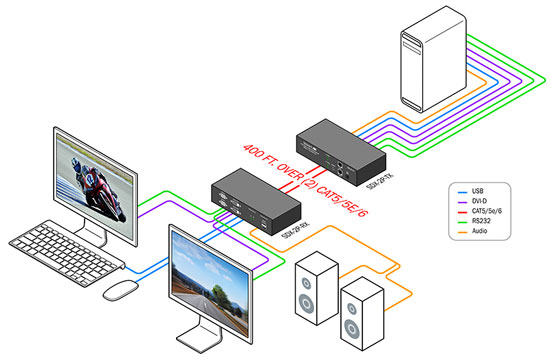

diagram

SmartAVI SDX-2P Transmitter Specifications

Mechanical
Height 1 in. (2.54 cm)
Width 5.1 in. (12.95 cm.)
Depth 3.62 in. (9.19 cm.)
Video FormatDVI-D
Maximum Pixel Clock165 MHz
Video Input Interface(2) DVI-D 29-pin female
Video Output Interface(2) DVI-D 29-pin female
ResolutionUp to 1920x1200 @ 60Hz and up to 4K/2K (3840x2160) @ 30Hz
DDC 5 volts p-p (TTL)
RS232 Input Interface(2) DB9 (female)
RS232 Output Interface(2) DB9 (female)
Speed@115 Kbps
IR Input Interface(1) 3.5 mm (female)
IR Output Interface(1) 3.5 mm (female)
Frequency Response30KHz to 80KHz
PowerExternal 100-240 VAC/5VDC3A in D
