For replacement product information call 1-877-586-6654.

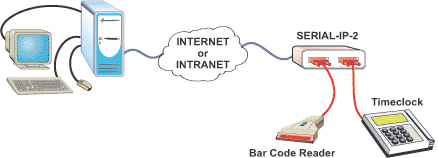

The NTI Serial IP Extender (SERIAL-IP) transparently connects, configures, and communicates
with serial devices over Ethernet using a single IP address. Available in 1, 2 and
4 port versions. Each model uses DB9 male serial connectors and supports RS-232,
RS-422 and RS-485. The NTI Serial IP Extender (SERIAL-IP) is the ideal
solution for a wide range of applications. Examples include: POS systems, security
systems, industrial automation, and building automation.
NTI Serial IP Extender
Features
- Network enable any RS-232/422/485 serial device for remote access and control.
- Virtual COM drivers for Windows 98/ME/2000/NT/XP.
- Multiple TCP client connections.
- Supports Web and Telnet consoles.
- Built-in Web Server allows you to manage the SERIAL-IP-4 from a web browser
anywhere on the LAN/WAN.
- Remotely manage SERIAL-IP-4 and your serial device.
- Off-site troubleshooting.
- Software Configurable – Control functionality remotely.
- Monitor Port – Use any PC on the LAN/WAN to actively view and troubleshoot
the communications status.
- Shows when there is a client connection to the server.
- Shows client IP address.
- Serial transmit and receive byte counter.
- Displays RTS/DTR - DCD/DSR/CTS status.
- Connect the SERIAL-IP-x to a NTI Serial Console Switch to remotely control
up to 32 RS232 devices.
Specifications
| Serial
Port Connector |
Male DB9 |
| LAN |
10.100 Mbps Auto-detecting-10
BaseT, 100 BaseTX. |
Supported
Signals
|
RS232: TX, RX, RTS, CTS, DTR,
DSR, DCD, GND.
RS422: TX+, TX-, RX+, RX-, RTS+, RTS-, CTS+, CTS-, GND.
RS485: Data +, Data –. |
| Data
Rate |
110 bps to 230.4 kbps.
|
| Protocols |
TCP, IP, ARP, DHCP, Telnet,
HTTP, UDP, ICMP. |
| OS Supported |
Windows 98/ME/2000/NT/XP |
| Management |
Console port, Telnet.
|
| Client
software |
Virtual COM port driver,
manager software |
| Communication
Mode |
Virtual COM port mode, direct
IP mode, paired mode. |
| Power
|
110 VAC at 60 Hz via AC adapter.
|
| Environmental |
|
| Operating
Temperature |
32 to 122°F (0 to 50°C).
|
|
Storage Temperature |
-4 to 140°F (-20 to
60°C). |
|
Humidity |
0 to 90% non-condensing.
|
| Dimensions
WxDxH (in): |
SERIAL-IP, SERIAL-IP-2: 3.4x4.5x0.9
SERIAL-IP-4: 4.5x7.3x1.1 |
| |
|
|
|
|
