SmartAVI 4K Wall
SM-4KWL-S
Save $662.12
The SmartAVI 4K-Wall has four HDMI inputs, four HDMI outputs and support for 4K resolution, the 4K-Wall delivers the premium content that audiences expect. This video wall controller and matrix switch enables users to craft engaging messaging and attractive branding with ease. With numerous options for how each input is displayed, there's no limit to the unique and exciting content options with this user-friendly hardware solution. Changing content inputs, re-directing what content shows on which screens, and re-orienting content layouts is as simple as the click of a button. Users don't have to learn any new programs or dedicate a computer to managing the 4K-Wall.
Applications
- Airports
- Malls
- Mass Video Conferencing
- Entertainment Venues
- Corporate Lobbies
- Restaurants
- Financial
- Medical
Features
- Complete hardware solution - no need for a PC
- Plug-and-play ready
- Four HDMI inputs and four HDMI outputs
- DVI-D (up to 1920x1200 input) with adapter
- Learns any EDID
- Internal EDID database
- Multiple configurations
- Easy control and access
- HDCP and HDMI 1.4 compliant
- Supports IR and RS-232
- 4K2K/3840x2160 total (with 1920x1080 monitors)
| Mechanical | |
| Height | 1.70 in. (4.31 cm) |
| Width | 17 in. (43.18 cm.) |
| Depth | 10.2 in. (25.90 cm.) |
| Video | |
| Video Bandwidth | Single-link 340MHz [10.2 Gbps] |
| Resolution HDTV | 480i, 480p, 720i, 720p, 1080i, 1080p |
| PC Resolution | 800x600 up to 1920x1200 |
| Input Video Signal | 1.2 volts |
| Connector | Type A [19-pin female] |
| Control | |
| Front Panel | Tact Switches w/OSD |
| RS-232 | DB9 (female) |
| Remote | IR RC5 |
| Power | |
| Requirements | Internal 100-240 VAC |
| Power Supply Approvals | UL, CE, CSA, CEC, RoHS |
UPC 813280019569
EAN 0813280019569
Question: Looking to use in a large conference room for meetings. Can I connect a computer to this unit and have the screen spread across all 4 TVs?

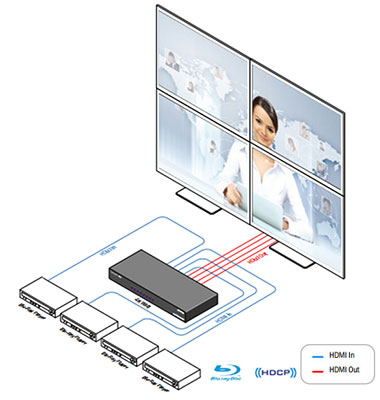

Answer: Thank you for your inquiry. This unit has 4 Available configurations: Video wall mode, Individual Mode, Quad mode and PIP mode. In Video Wall mode, a user can select one of the four HDMI inputs and project the image across the four attached screens in a 2 x 2 format.
If the computer has an HDMI output, and you would like a 2 x 2 display, this device should work for you.
A brochure for this device can be found here: http://www.smartavi.com/assets/files/b_4kwall_brochure.pdf and the manual can be viewed here: http://www.smartavi.com/assets/files/m_4kwall_fullmanual.pdf
Depending on your particular needs, there may be other options out there for you. If you would like, please feel free to contact your KVM Switches Online representative at 1-877-586-6654 or via our online chat feature to discuss your project in greater detail.
Answer: Thank you for your inquiry. This unit has 4 Available configurations: Video wall mode, Individual Mode, Quad mode and PIP mode. In Video Wall mode, a user can select one of the four HDMI inputs and project the image across the four attached screens in a 2 x 2 format.
If the computer has an HDMI output, and you would like a 2 x 2 display, this device should work for you.
A brochure for this device can be found here: http://www.smartavi.com/assets/files/b_4kwall_brochure.pdf and the manual can be viewed here: http://www.smartavi.com/assets/files/m_4kwall_fullmanual.pdf
Depending on your particular needs, there may be other options out there for you. If you would like, please feel free to contact your KVM Switches Online representative at 1-877-586-6654 or via our online chat feature to discuss your project in greater detail.
