NTI 8-port Legacy SUN PC KVM Switch
ST-8UO
The NTI ST-8UO NODEMUX Legacy SUN PC KVM Switch allows one keyboard, monitor and mouse to control 8 computers. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached computer 100% of the time, so all computers boot error-free.
NTI NODEMUX ST-8UO Features and Benefits:
- Compatible with legacy PS/2 and SUN computers.
- Cascade 4, 8 or 16-port units from one switch to control up to 152 computers.
- Supports crisp and clear 1900x1200 video resolution.
- Well developed code - supports more keyboards, mice and computers than any other KVM.
NTI NODEMUX ST-8UO Package Contents:
- NTI NODEMUX ST-8UO USB KVM Switch
- IEC Line cord (USA)
- Rack Mount Kit
- CD with pdf file of user manaul

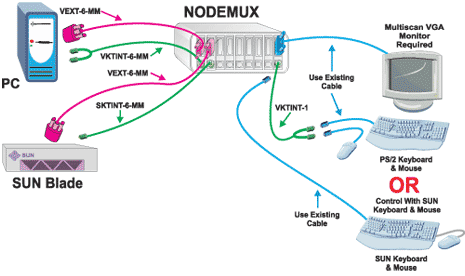

NTI NODEMUX 8-port Legacy SUN PC KVM Switch Diagram
NTI NODEMUX ST-8UO Specifications:
| Mechanical | |
| Width | 13.3 in. |
| Height | 1.75 in. |
| Depth | 5.9 in. |
| Environmental | |
| Operating Temperature | 32 to 100°F (0 to 38°C) |
| Storage Temperature | -20 - 140°F (-30 to 60°C) |
| Operating Humidity | 17 to 90% non-condensing RH |
| Power | 110V or 220VAC @ 50/60Hz via IEC connector |
| Hosts | |
| Connectors | 8 x 15-pin HD; 8 x 8-pin miniDIN |
| Compatibility | Legacy PS/2 and SUN computers |
| Monitor | |
| Resolution | Maximum 1900 x 1200 |
| Connectors | 15-pin HD |
| Monitor Type | Multiscan VGA required; 150 MHz bandwidth |
| Devices | |
| Connectors | 8-pin miniDIN |
| Compatibility | PS/2 or SUN |
| Peripherals | Hot pluggable |
| Regulatory Approvals | CE, RoHS |
