NTI ST-C5V2ARS-1000S Hi-Res VGA Video/Audio + RS232 Extender via CAT5: Extend to 1,000 Feet

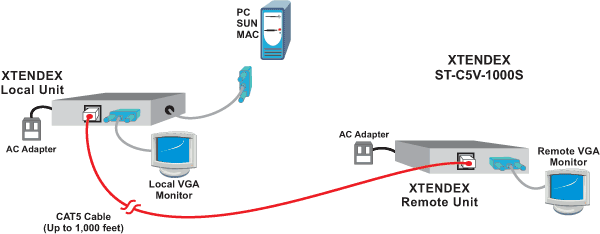

The XTENDEX VGA Extender transmits VGA video up to 1,000 feet away from a computer using CAT5/5e/6 cable. Each video extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to a monitor.

• Industry-leading ultra high resolutions up to 2048x1536.
• High quality, rugged steel construction with durable powder coat finish.
• Automatically adjust video quality and color skew for crystal clear video with longer cables.
• Available options: two-way audio (support for speakers and microphone), RS232, two-way audio + RS232.
• DDC2B support for local or remote monitor (user selectable).
• Built-in surge protection.
Two-Way AudioTwo-Way Audio:
Stereo Audio:
• Stereo audio can be heard both locally and remotely
• Frequency response: 20 Hz to 20 kHz, +/-1 dB.
• Signal-to-Noise Ratio (SNR): 76 dBA.
• Total Harmonic Distortion and Noise (THD+N): 0.017%.
• Stereo crosstalk: -70 dB.
• Input impedance: 10k Ohms.
• Line level output; supports multimedia speakers.
• Maximum I/O levels: 3.1Vp-p (line level).
• CD quality audio output.
Microphone:
• Microphone can be used locally and remotely, user selectable.
• Supports electret microphones.
• Input impedance: 10k Ohms.
• Maximum I/O levels: 1V, unbalanced

RS232

• Supports TXD, RXD, DTR, DSR, DCD, CTS and RTS.
• Baud rate up to 57.6K.
• Support for a touch screen monitor.



Specifications:

Mechanical
Width	5.05 in. (128 mm.)
Height	1.09  in. (28 mm.)
Depth	3.08  in. (78 mm.)
Environmental
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-20 - 140°F (-30 to 60°C)
Operating Humidity	17 to 90% non-condensing RH
Power Consumption	110V-220VAC @ 50/60Hz-5VDC/2.0A--10W
Approvals	CE, RoHS
