4-port 4K Desktop KVM, HDMI 1.4, USB 3.0 Peripheral Port, Audio

SV240H-001

$1,104.00$779.29
Save $324.71

End-Of-Life (EOL)
For stock: Contact Us
Replaced by: Vertiv SV240DPH-400

Video: HDMI
Ports: 4 Computers
Output: Single Monitor

Avocent Vertiv SV240H Datasheet (PDF)
Avocent Vertiv SV240H Brochure (PDF)
Avocent Vertiv SV240H Manual (PDF)

The Avocent SV240H desktop KVM switch helps bring order to the desktop. Whether managing a small office/home office or a multimedia desktop at a large organization, the SV240H provides users with instant access to up to four computers, all through a single monitor, keyboard and mouse.

The SV240H also provides unique productivity features to help users work more efficiently across systems. Managed Copy and Paste enables effortless transfer of data from one system to another; and this function can be customized to limit the formats and types of data that can be transferred. Advanced video support provides a native HDMI 1.4 connection with video resolutions up to UHD 4K (3840x2160 @ 30). Additional usability features include, zero delay switching between connected sources and flexible assignment of audio devices.

The Avocent SV240H KVM switch is a cost effective productivity solution designed to: Increase productivity with simple, rapid access to systems, Gain true image reproduction and display flexibility with support for UHD 4K displays, and Reduce costs with fewer peripheral purchases and easier IT maintenance

  • Advanced video support for resolutions up to UHD 4K assures image quality is highly accurate and video plays at the highest definition possible.
  • Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.
  • Independent audio and USB switching lets users freeze audio and USB 3.0 peripherals while simultaneously working on a different system.
  • Instant monitor, mouse and keyboard switching via emulation assures zero delay when switching between systems.

SV240H KVM Back View

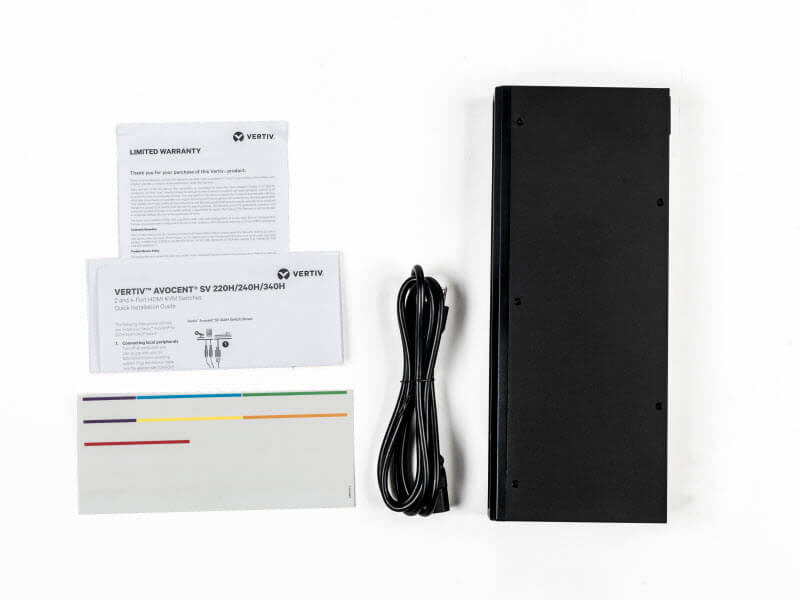

Cybex SV240H back viewAvocent Vertiv SV240H Whats Included? Package contents

Avocent SV240H-001 Specifications:

Mechanical
Height 1.7 in (42 mm)
Width 13.7 in (342 mm)
Depth5 in (125 mm)
Weight3 lbs (1.5 kg)
MicrophoneYes
SpeakerYes
Video1 x HDMI 1.4
MAX ResolutionUHD 4K - 3840x2160 pixels @ 30 Hz
Environmental
Operating Temperature32° to 104°F (0° to 40°C)
Storage Temperature-4° to 140°F (-20° to 60°C)
Humidity0-80% RH, non-condensing
Power
Operating Voltage100 to 240VAC
Power Consumption12V DC, 1.5A (maximum) power adapter with center-pin-positive polarity
Device Support
CertificationsRCM, EU, FCC Class B, VCCI, c-UL
USB Peripheral PortsYes - 3 x USB Super Speed
Warranty2 Year

Avocent Cybex (by Vertiv) SV240H is also known as SV 240H

UPC / EAN Barcode icon
UPC 636430075808
EAN 0636430075808
Question: Is HDCP supported?
Answer: Thank you for your patience. Unfortunately, we do not believe this device HDCP compliant. We are attempting to confirm with the manufacture, but have not had a response yet.

If we learn this device does support HDCP, we will add that to the specifications.

Thank you for your inquiry.

Question: how fast does it switch?
Answer: Thank you for your inquiry,

The integrated emulation assures zero delay when switching between systems. There should not be any noticeable delay at all.

Question: Need switch approved by DSS for HDMI switching between unclass and class computers
Answer: Thank you for your inquiry,

We would gladly help you out with that; I have forwarded your request to our sales department - they should get back to you soon.

Please let us know if there is anything else we can help you with.

Question: Is this switch able to work with a COMBINATION of: Windows 7; Windows 10; Ubuntu 18.04 computers? (Manual switching is acceptable)
Answer: Thank you for your inquiry,

The Avocent (by Vertiv) SV240H has been designed to be driver-free and OS-independent for basic KVM functionality - including switching via IR or push-button. The SV240H should work without any problems with a combination of Windows 7, Windows 10, and Linux Ubuntu 18.004 computers.

Please note, "Copy and Paste" functionality across the computers connected to a SV series KVM requires the "Copy and Paste Driver" found here.

Question: Does it come with the parts to mount it in a Rack?
Answer: Thank you for your inquiry,

This Avocent (by Vertiv) SV240H has not been designed to be rack mounted. You may be able to for example place it onto a vented Server Rack Shelf and to use zip-ties to secure it.

Alternatively you may also be interested in the SmartAVI UHDN-4P which is a similar 4-Port HDMI 4K KVM Switch that has been designed for rack mounting using the optional SM-Rack rack mounting kit.

Question: Would I be able to use this and have it display my pc to 2 monitors. Then switch to my xbox on 1 monitor, and then switch to my Nintendo switch to display on 1 monitor. (not all at the same time obviously.) All via hdmi
Answer: Thank you for your inquiry,

Most versions of Xbox and some Nintendo Switch applications use signals which are protected by HDCP (High-bandwidth Digital Content Protection), and would require a KVM Switch which also supports HDCP passthrough.

For a source PC with 2 video sources, you can use a Dual-monitor KVM switch (leave the second display input source unplugged for the Xbox and Nintendo Switch ports) such as this SmartAVI UHDN-4P-DUO which also supports HDCP.

Question: Can a large USB-Hub ( eg 7 ports) be connected on one of the 3 USB peripheral ports?
Answer: Thank you for your inquiry. Yes, you should be able to attach a large USB hub to one of the 3 USB peripheral ports. However, it may not provide enough power for some USB powered devices if the hub itself is not powered.

Question: Just wanted to make sure the SV240H supports macOS 10.14 along with Windows 10. Thank you.
Answer: Thank you for your inquiry,

According to the manufacturer, there are no known compatibility errors with MacOS versions and Windows 10 when connected to SV240H, but as a rule of thumb, please use direct video connections and avoid using video converters/adapter since it might affect video display and may cause issues.

Please let us know if there is anything else we can help you with!
