BlackBox ServSwitch Secure Switch
SW721A-R2
The BlackBox ServSwitch SW721A-R2 is a keyboard/video/mouse switch compatible with AT and PS/2 computer platforms. You can attach as many as 256 CPUs to a set of ServSwitch units and use a single shared keyboard, monitor, and mouse to administer them all.
You can configure the ServSwitch SW721A-R2, scan CPU ports, set and trigger a screen-saver function, set the key-repeat rate for the keyboard, and perform other functions via on-screen menus or by entering simple commands of two to six keystrokes from the shared keyboard. You can also control the switch (but not actually view the CPUs) through the RS-232 port.
The switch is permanently hard wired. Every circuit is soldered down and there is no flash ROM. There is no way to use software to access one CPU from the other or to access one network from the other.
You get automatic booting even with different kinds of CPUs! Connect both PC and PS/2 CPUs to the ServSwitch SW721A-R2, and boot them all simultaneously, Or boot them remotely from your PC.
Plug a PS/2 mouse into the switch and access CPUs controlled with either serial or PS/2 mice-or any combination of the two.
Black Box ServSwitch Secure SW721A-R2 Features
- Automatic keyboard and mouse booting for IBM PC compatibles.
- Switch from your keyboard or the switch's front panel.
- Non-upgradeable ROM for security.
- Access up to 256 CPUs with one keyboard, monitor, and mouse.
- Excellent video resolution - up to 1600 x 1280 @ 100 Hz.
- Supports USB keyboards and mice.

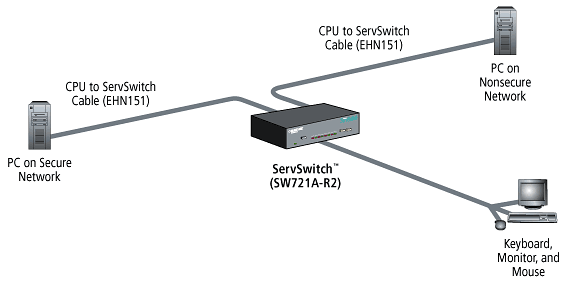

ServSwitch Secure (SW721A-R2)
Black Box ServSwitch Secure SW721A-R2 Specifications:
| Mechanical | |
| Height | 2.3 in. (5.8 cm.) |
| Width | 8.8 in. (22.4 cm.) |
| Depth | 4.9 in. (12.4 cm.) |
| Weight | 3 lbs. (1.4 kg.) |
| Environmental | |
| Operating Temperature | 32 -131 degrees F |
| Power | |
| Operating Voltage | 100 to 240 VAC |
| Power Frequency | 50-60 Hz |
| System Requirements | |
| Computers | IBM, PC/AT, PS/2 or compatible |
| Resolution | 1024 x 768 |
| Video | Monochrome, CGA, EGA, or VGA |
| Other | |
| Distance (Maximum) | 20 ft. (6 m) |
| VGA w/ Coax Cable | 100 ft. (30.4 m) |
| Connectors | (1) 6-pin RJ-11, (1) 5-pin DIN |
Answer: Thank you for your inquiry. This unit uses a wall mount power supply with standard US blades on the power block. The power supply is attached to the unit via a female 5-pin DIN. Here are the power specifications as mentioned in the manual.
Power:
120-VAC, 60-Hz operation, from wallmount power supply:
Optimal input: 120 VAC, 60 Hz at 100 mA;
Output: 17 VAC CT at 700 mA;
Consumption: Up to 11.9 VA;
Question: How can we disable setting the key-repeat rate for the keyboard, and perform other functions via on-screen menus or by entering simple commands of two to six keystrokes from the shared keyboard? We need to ensure no user can utilize any hot key functionality.
Answer: Thank you for your inquiry. A list of Hot Key functions can be found in the manual starting on page 22. ( http://ftp.blackbox.com/anonymous/manuals/S/SW722A-R2-SW722AE-R2_APR03.pdf ).
Unfortunately, it doesn't appear hot key switching can be disabled on this particular unit. For that type of functionality, you may be interested in a secure KVM. A listing of secure 2-port KVMs can be found here: https://www.kvm-switches-online.com/secure-2-port.html. The full line of Avocent secure KVMs can be viewed here: https://www.kvm-switches-online.com/avocent-switchview-sc.html.
