Home >> Discontinued Products >> Aten Discontinued Products >> ATEN SXP500
Share |
SXP500 - ATEN SXP500 - SXP500


Part # SXP500
Free Project Eval
Product Description

Please note, the ATEN SXP500 is discontinued. For replacement or upgrade options, please contact your KVM Switches Online sales representative at 1-877-586-6654.

ATEN SXP500 Serial/Parallel Reversible Converter

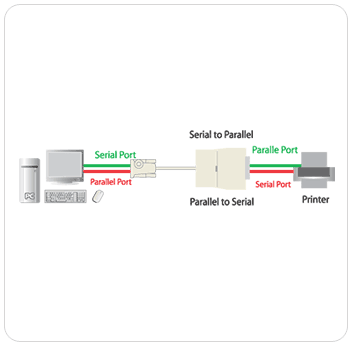

The ATEN SXP500 allows Centronics and RS-232 devices to communicate with each other via serial to parallel or parallel to serial conversion. Simple DIP Switch settings establish the flow direction, serial transfer parameters, etc. The serial baud rate can be set from 1200 to 115200 bps., with support for both hardware and software (XON/XOFF) handshaking. The parallel interface speed is 92.16 Kbytes/sec. The ATEN SXP500 provides a DB-9 RS-232C (DCE) compatible connector attached to a 1.8m cable at one end, and a C-36 Centronics connector integrated on the unit body. This SXP500 design allows the serial and parallel devices to be connected directly (provided they are located close enough to each other), without the need for additional cables.

ATEN SXP500 Features:

  • DIP Switch for Direction Setting Serial baud rate 1200 to 115200 bps (DIP switch selectable) DB9 (DCE) to Centronics-36 (C36) Parallel Interface 92.16 Kb/sec. Both Hardware and Software (XON/XOFF) Handshaking Non Powered Easy Installation

ATEN (SXP500) Serial/Parallel Reversible Converter

ATEN (SXP500) Serial/Parallel Reversible Converter

ATEN SXP500 Package Content:

  • 1x SXP-500 Serial/Parallel Converter
  • 1x User Manual

ATEN SXP500 Specifications:

Width 14 in. (35.56 cm.)
Height 12 in. (30.48 cm.)
Length 18.5 in. (46.99 cm.)
Case Qty. 40
Package Dimensions
Depth 1.8 in. (4.4 cm)
Width 4.8 in. (12.1 cm)
Height 5.2 in. (13.2 cm)
Case Plastic
Package Wt. 0.5 lb. (0.3 kg)
Unit Wt. 0.5 lb. (0.3 kg)
Case Wt. 21.0 lb. (9.0 kg)
Depth 3.25 in. (8.255 cm.)
Width 2.40 in. (6.096 cm.)
Height 0.8 in. (2.032 cm.)
Interface In (Serial or Parallel), Out (Parallel or Serial)
Connectors DB-9 Female, C-36 Male
Baud Rate 1200 ~ 921600 bps
