USB to 7.1 Channel Audio Adapter

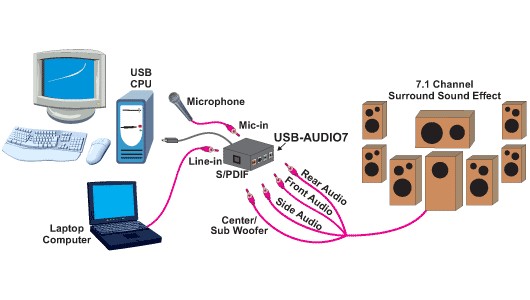

The USB 7.1 Channel Audio Adapter connects a laptop or desktop PC to a surround sound home theater system through the USB port instead of a sound card.

USB-Audio7 Features

• Provides both stereo and surround sound outputs.
• Rear audio, side audio, center/sub woofer, and front audio channel outputs, digital optical input/output, as well as one mic-in port and one line-in port.
• Improves a computer's audio playback quality.
• Eliminates audio noise and distortion.
• Full-duplex playback/recording audio stream without the use of a PC sound card.
• Dolby digital audio streaming via S/PDIF out.
• Selectable digital output: PCM, Dolby¨ Digital Live or DTS Interactive.
• Special effects and DSP functions: Speaker Shifter, Environment Size Adjust, Karaoke Key Shifting, Voice Cancellation, Voice Effects.
• 10-band graphic equalizer with 12 factory presets and user definable presets.
• Six 3.5mm audio jacks, two TOSLINK EIAJ Optical JIS FO5 connectors, one male USB Type A connector
• Transfer Rate: 12 Mbps
• Compliant with USB 1.1 & 2.0 specifications
• Compliant with USB audio device class specification V1.0
• Compliant with USB HID class specification V1.1
• Supports Plug-n-Play specifications
• Supports 48/44.1KHz sampling rate in analog recording and playback modes.
• Length: 2.1 feet
• Power: Bus powered (no external power required)
• System Requirements:
• Windows XP/Vista/7
• Available USB port
• Package includes:
• USB to Audio Adapter, 7.1 Channel
• 3.5mm Male to 2 3.5mm Female Y Adapter for Stereo Microphone
• Datasheet
• CD with Drivers and User Manual
