NTI USB Extender, 150ft (line powered)
USB-C5-LC

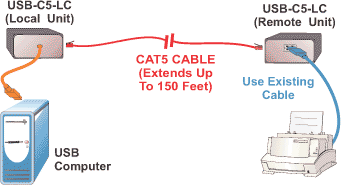

The NTI USB Extender USB-C5-LC extends one USB device up to 150 feet. The USB extenders consist of two units, the local unit and the remote unit, which are interconnected with CAT5/5e/6 cable. The Local and Remote units are powered via the attached computer USB port.
- Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printer, scanner, keyboard, etc.).
- Transparent data extension.
- Compatible with USB computers (PC, SUN, MAC).
- Compliant with USB 1.1 (low/full speed) specifications.
- Supports Plug-n-Play specification.
- The USB-C5-LC is a line powered (400 mA) version of the NTI Xtendex series. To utilize USB devices with higher power requirements, see the outlet powered (500mA) version: USB-C5-LCPA.
NTI USB-C5-LC USB Extender
USB-C5-LC Specifications:
| Local Unit | |
| Connection | One male USB Type A connector. |
| Bandwidth | Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices. |
| Dimensions | 1.34W x 2.28D x 0.98H |
| Remote Unit | |
| Connection | One female USB Type A connector. |
| Bandwidth | Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices. |
| Dimensions | 1.34W x 2.28D x 0.98H |
| Multiplatform Support | |
| Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD and MAC OS 9/10.. | |
| USB Devices | |
| Supports low-speed and full-speed USB devices. | |
| USB 1.1 compliant. | |
| Supports self-powered and/or bus-powered USB devices | |
| Power | |
| Local Unit | Powered from attached computer. |
| Remote Unit | Powered from Local unit over CATx. |
| Environmental/Regulatory | |
| Operating Temperature | 32 to 100F (0 to 38C) |
| Storage Temperature | -20 to 140F (-30 to 60C) |
| Humidity | Operating and Storing: 17 to 90% non-condensing RH. |
| Regulatory Approvals | CE, RoHs |
| Warranty | 2 Years |
| Cables | Use CAT5/5e/6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included). -Use of CAT6 cable may decrease the maximum length of extension. |
