USB 2.0/1.1, CAT5 Receiver
USB2M-RX
Save $32.90

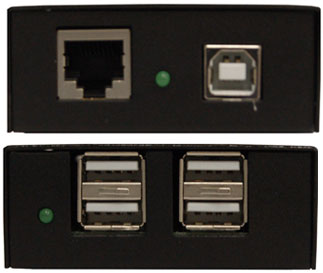

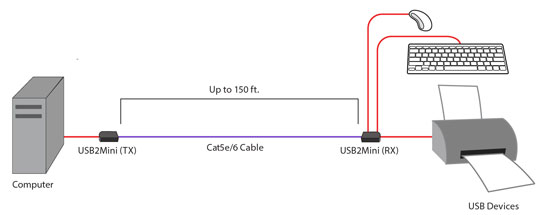

SmartAVI's USB2-Mini Receiver extends standard USB (Universal Serial Bus) 2.0 signals up to 150 feet using a single Cat5e/6 cable. The USB2-Mini Receiver supports all USB 2.0 high-speed devices, from keyboards to printers, and will operate on Windows¨, Mac and Linux¨ operating systems. An integrated four-port hub allows for multiple devices to be connected to the USB2-Mini at once. Additional USB hubs can be added, increasing the amount of devices that can be plugged into the USB2-Mini.
Applications
- Digital Signage
- Home Networking
- Remote USB Connections
- USB Device Sharing
- USB Electronics Devices
- Security Systems
- KVM Extension
Features
- Supports all USB 2.0 and 1.1 Devices Transparently (Flash Drives, Printers, Scanners, etc.)
- Supports USB 1.1 keyboard and mouse
- Works on Windows, Mac and Linux Operating Systems
- Integrated Four-Port Hub
- Bus-Powered Local Unit
- Power Adaptor for Remote Unit
- Plug-and-Play
SmartAVI USB2-MINI Receiver Specifications
| Mechanical | |
| Height | 1.5 in. (3.81 cm) |
| Width | 3.37 in. (8.55 cm.) |
| Depth | 3.37 in. (8.55 cm.) |
| Range over Cat5/6 | 150 ft |
| USB Fixed Data Rate | 480 Mbps |
| USB Version Compatibility | 2.0 and 1.1 |
| USB Connector Type (TX) | (1) Type B |
| USB Connector Type (TX) | (4) Type A |
| UTP Signal Type | LVDS |
| UTP Connector | Unshielded RJ-45 |
| Power | 5V DC @ 2mA |
| Power Connector | 2.1mm DC jack (center+ve) |
UPC 813280023702
EAN 0813280023702
