VGA/Audio Cat 5 Extender Wall Plate (1280 x 1024@150m)
VE156
Save $43.40
The VE156 VGA Over Cat 5 Extender Wall Plate extends VGA and audio signals up to 150m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE156 combination can further extend the distance or multiply sources/displays.
The VE156 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE156's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Product Features

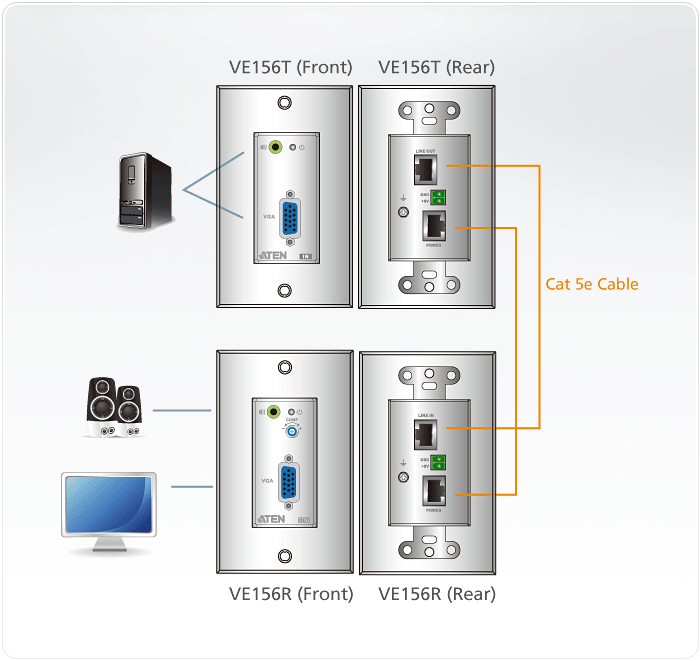

- Uses two Cat 5e cables to connect the local and remote units - one to transmit video and audio; and another for power*
- Remotely powered from either the Transmitter or Receiver side**
- Extends the distance between VGA source and VGA display
- Superior video quality - up to 1920 x 1200@60Hz (30 m), 1280 x 1024@60Hz (150m)
- Adjustable Gain Control - manually adjusts signal strength to compensate for distance
- Supports wide screen formats
- Supports hot-plugging
- Decora type design is easily configurable to fit various wall plates
- LED indication of power sources / connection status
- Supports stereo audio
- Built-in 8KV/15KV ESD protection
- Easy installation
- Wall mountable type for a neat and cleaner installation
- Plug-and-play - no software installation required
Package Includes
- 1x VE156T VGA Over Cat 5 Extender Wall Plate
- 1x VE156R VGA Over Cat 5 Extender Wall Plate
- 1x Terminal Block Connector
- 1x Power Adapter
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | VE156R: N/A VE156T: 1 x HDB-15 Female |
| Impedance | VE156R: N/A VE156T: 100Ω |
| Video Output | |
| Interfaces | VE156R: 1 x HDB-15 Female VE156T: N/A |
| Impedance | VE156R: 100Ω VE156T: N/A |
| Video | |
| Max Bandwidth | VE156R: 300 MHz VE156T: 300 MHz |
| Max Resolutions/Distance | VE156R: Up to 1920 x 1200@30m; 1280 x 1024@150m VE156T: Up to 1920 x 1200@30m; 1280 x 1024@150m |
| Audio | |
| Input | VE156R: N/A VE156T: 1 x Mini Stereo Jack Female |
| Input | VE156R: 1 x Mini Stereo Jack Female VE156T: N/A |
| Power | |
| Connectors | VE156R: 1 x Terminal Block VE156T: 1 x Terminal Block |
| Consumption | VE156R: 9V DC, 3.2W VE156T: 9V DC, 3.2W |
| Environmental | |
| Operating Temperature | VE156R: 32°-104°F (0°-40°C) VE156T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE156R: -4°-140°F (-20°-60°C) VE156T: -4°-140°F (-20°-60°C) |
| Humidity | VE156R: 0-80% RH, Non-Condensing VE156T: 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | VE156R: Metal VE156T: Metal |
| Weight | VE156R: 0.4 lb (0.18 kg) VE156T: 0.4 lb (0.18 kg) |
| Dimensions (L x W x H) | VE156R: 4.1 x 1.75 x 1.68 in. (10.41 x 4.44 x 4.26 cm) VE156T: 4.1 x 1.75 x 1.68 in. (10.41 x 4.44 x 4.26 cm) |
UPC 672792004643
EAN 0672792004643
