VGA/Audio/RS-232 Cat 5 Extender w/ Auto Compensation
VE500

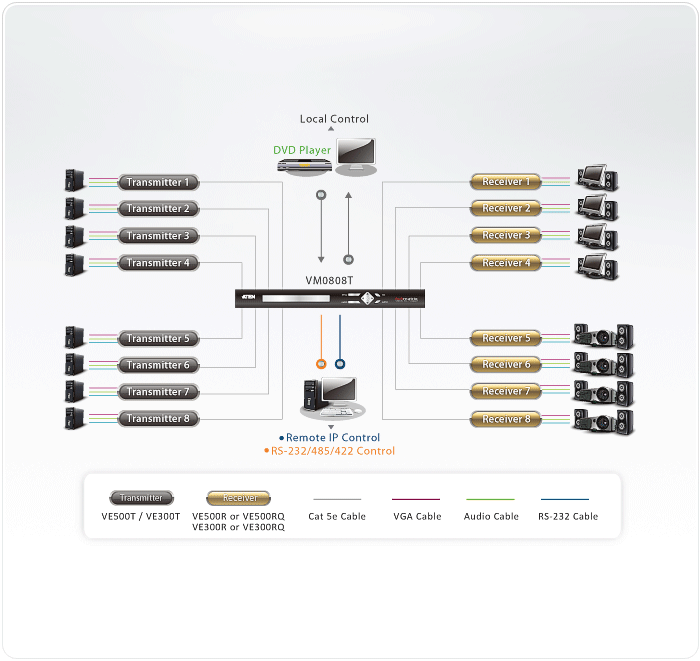

The VE500 A/V Over Cat 5 Extender is exclusively designed to integrate seamlessly with the ATEN VM0808T/VM1616T Matrix Switch. The VE500 allows you to extend the distance between a source device and video display up to 150 m with a resolution of 1600 x 1200 (VE500R), or up to 300m with a resolution of 1280 x 1024 (VE500RQ).
It is able to accomplish this by means of a local transmitting unit (the VE500T), connected to the remote receiving unit (either the VE500R or VE500RQ), using Cat 5e twisted pair cable.Because it allows access to the audio/video/RS-232 source over large distances, the VE500 is ideal for installations such as construction sites, factory floors, control and security centers, where the system equipment can reside in a safe and secure location, while the display is conveniently located in public view.
To provide optimum video quality over large distances, the VE500RQ supports RGB delay tuner functionality - allowing you to manually synchronize the RGB signals. It also provides a line synchronization function that corrects color phase and timing errors that occur over long distance transmissions, and stores the settings.
Product Features
- Uses Cat 5e cable to connect the Transmitter and Receiver
- Deskew Function (VE500RQ) - automatically synchronizes the time delay of RGB signals to compensate for distance
- Long Distance Transmission up to 300 m
- Superior video quality
- Superior audio quality - balanced audio provides flawless long-distance transmission
- Adjustable gain control - manually adjust signal strength to compensate for distance
- Supports one local and one remote displays
- Provides RS-232 channel
- Supports wide screen
- Rack Mountable
Package Includes
- 1x VE500T
- 1x VE500R
- 1x VGA EDID Emulator
- 1x Power Adapter
- 1x Mounting Kit
- 2x Terminal Blocks
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 1 x HDB-15 Male |
| Impedance | 75Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDB-15 Female |
| Impedance | 75Ω |
| Video | |
| Max Bandwidth | 300 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible |
| Max Resolutions/Distance | 1920 x 1200@30m; 1280 x 1024@200m |
| Audio | |
| Input | Balanced: 1 x Captive Screw Connector, 5 Pole (Green) Stereo: 1 x Mini Stereo Jack Female (Green) |
| Output | Balanced: 1 x Captive Screw Connector, 5 Pole (Green) Stereo: 1 x Mini Stereo Jack Female (Green) |
| Control | |
| RS-232 | Connector: VE500T: 1 x DB-9 Female (Black); VE500R/VE500RQ: 1 x DB-9 Male (Black) Serial Control Pin Configurations: Female: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Male: Pin2 = Rx, Pin 3=Tx, Pin 5= Gnd |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | VE500T: 5.3 VDC, 2.98W VE500R: 5.3 VDC, 4.04W |
| Environmental | |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | -4°-140°F (-20°-60°C) |
| Humidity | 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
