HDMI HDBaseT-Lite Receiver with Scaler (1080p@70m) (HDBaseT Class B)

VE805R

$577.28
FREE Shipping on orders over $100

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.

With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Product Features

  • HDBaseT Connectivity - extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6a cable
  • HDBaseT Anti-jamming - resists signal interference during high quality video transmissions using HDBaseT technology
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Scaler - features a scaling function to integrate a video wall seamlessly with various output formats
  • Seamless Switch - close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
  • Video Wall - features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI*
  • Bi-directional IR channel - IR transmission is processed one direction at a time**
  • Rack-mountable

Package Includes

  • 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
  • 1x Power Adapter
  • 1x IR Transmitter
  • 1x IR Receiver
  • 1x Terminal Block
  • 1x User Instructions

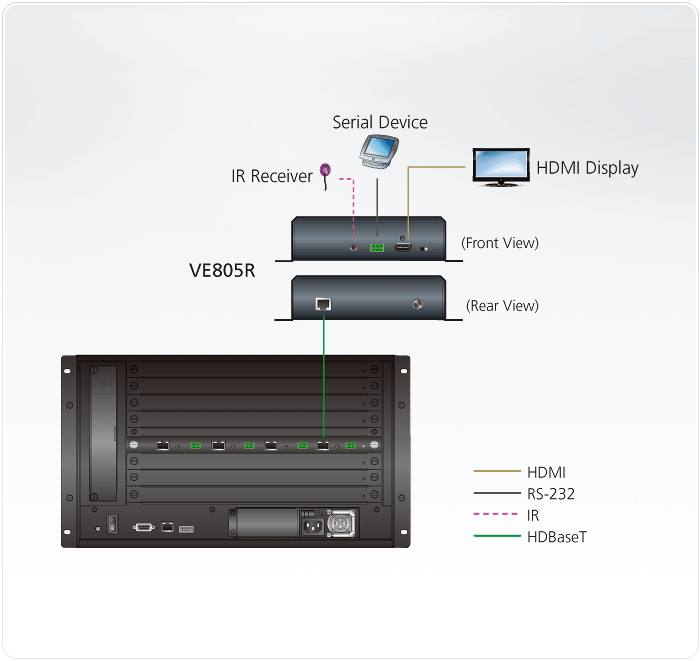

Product Use Diagram

Product Specifications

Video Input
Interfaces1 x RJ-45 Female
Impedance100Ω
Video Output
Interfaces1 x HDMI Type A Female
Impedance100Ω
Video
Max Data Rate6.75 Gbps (2.25 Gbps Per Lane)
Max Pixel Clock225 MHz
ComplianceHDMI (3D, Deep Color)
HDCP 1.4 Compatible
HDBaseT Compatible
Max Resolutions/DistanceUp to 1080p @60m (Cat 5e/6); 70m (Cat 6a)
Control
RS-2321 x Captive Screw Connector, 3 Pole
IR1 x Mini Stereo Jack Female
SwitchesFirmware: 1 x Slide Switch
Power
Connectors1 x DC Jack
Consumption5V DC, 9.5W
Environmental
Operating Temperature32°-104°F (0°-40°C)
Storage Temperature-4°-140°F (-20°-60°C)
Humidity0-80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight1.83 lb (0.83 kg)
Dimensions (L x W x H)7.16 x 6.66 x 1.65 in. (18.18 x 16.92 x 4.20 cm)
UPC / EAN Barcode icon
UPC 672792006265
EAN 0672792006265
