HDMI/Audio Cat 5 Extender Wall Plate (1080p@40m)
VE806
Save $38.88
The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.
The VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE806's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Product Features

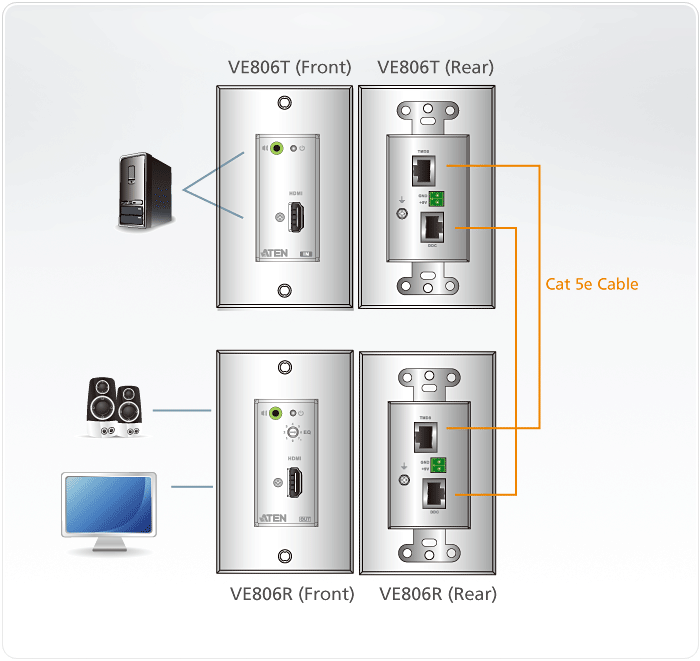

- Uses two Cat 5e cables to connect the local and remote units - one to transmit video and audio; and another for power *
- Remotely powered from either the Transmitter or Receiver side **
- Extends the distance between HDMI source and HDMI display
- Superior video quality - up to 1080p@60Hz (40m), 1080i@60Hz (60m)
- HDMI (3D, Deep Color); HDCP Compatible
- 8 segment equalization adjustment switch optimizes display quality
- Supports wide screen formats
- Supports hot-plugging
- Decora type design is easily configurable to fit various wall plates
- LED indication of power sources / connection status
- Supports stereo audio
- Built-in 8KV/15KV ESD protection
- Easy installation
- Wall mountable type for a neat and cleaner installation
- Plug-and-play - no software installation required
Package Includes
- 1x VE806T HDMI Over Cat 5 Extender Wall Plate
- 1x VE806R HDMI Over Cat 5 Extender Wall Plate
- 1x Terminal Block Connector
- 1x Power Adapter
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | VE806R: N/A VE806T: 1 x HDMI Type A Female |
| Impedance | VE806R: N/A VE806T: 100Ω |
| Max Distance | VE806R: N/A VE806T: 1.8 m |
| Video Output | |
| Interfaces | VE806R: 1 x HDMI Type A Female VE806T: N/A |
| Impedance | VE806R: 100Ω VE806T: N/A |
| Video | |
| Max Data Rate | VE806R: 6.75 Gbps (2.25 Gbps Per Lane) VE806T: 6.75 Gbps (2.25 Gbps Per Lane) |
| Max Pixel Clock | VE806R: 225 MHz VE806T: 225 MHz |
| Compliance | VE806R: HDMI (3D, Deep Color), HDCP Compatible VE806T: HDMI (3D, Deep Color), HDCP Compatible |
| Max Resolutions/Distance | VE806R: Up to 1080p@40m; 1080i@60m VE806T: Up to 1080p@40m; 1080i@60m |
| Audio | |
| Input | VE806R: N/A VE806T: 1 x HDMI Type A Female |
| Output | VE806R: 1 x HDMI Type A Female VE806T: N/A |
| Power | |
| Connectors | VE806R: 1 x Terminal Block VE806T: 1 x Terminal Block |
| Consumption | VE806R: 9V DC, 2.9W VE806T: 9V DC, 2.9W |
| Environmental | |
| Operating Temperature | VE806R: 32°-104°F (0°-40°C) VE806T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE806R: -4°-140°F (-20°-60°C) VE806T: -4°-140°F (-20°-60°C) |
| Humidity | VE806R: 0-80% RH, Non-Condensing VE806T: 0-80% RH, Non-Condensing |
| Physical Properties | |
| Housing | VE806R: Metal VE806T: Metal |
| Weight | VE806R: 0.37 lb (0.17 kg) VE806T: 0.37 lb (0.17 kg) |
| Dimensions (L x W x H) | VE806R: 4.1 x 1.75 x 1.57 in. (10.41 x 4.44 x 4.00 cm) VE806T: 4.1 x 1.75 x 1.57 in. (10.41 x 4.44 x 4.00 cm) |
UPC 672792004667
EAN 0672792004667
