5x2 HDMI Wireless Extender (1080p@30m)
VE829
Discontinued
For upgrade or replacement options: Contact Us

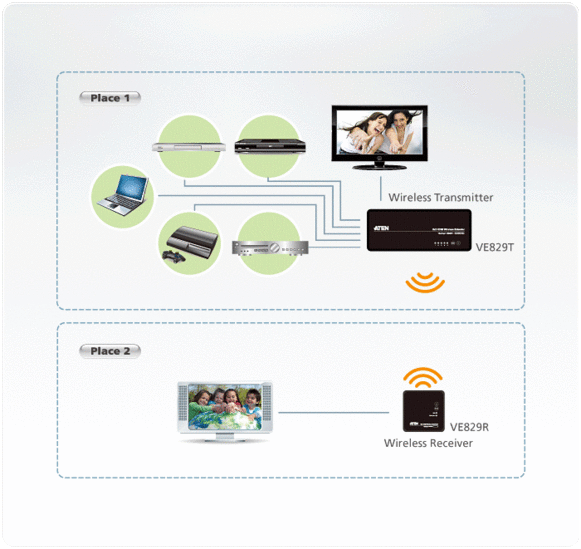

The VE829 5x2 HDMI Wireless Extender is the first solution to send full uncompressed HD 1080p, while connecting up to 5 source devices and allowing users to switch and independently select any source to display on two HDTVs. Its wireless matrix feature is the biggest breakthrough in Audio / Video solutions to date. This means you can watch cable TV in one location (transmitter side) and, at the same time, independently select a Blu-ray movie to watch in another location (receiver side). The VE829 is capable of streaming Full HD 1080p with support for 3D content and digital audio up to 30m* away, within the home or any desired setup.
The solution consists of a Wireless Transmitter and a Wireless Receiver with connections for the HDMI and Component, along with a loop through (local port) for advanced two-HDTV setups. It also features USB HID connectivity for adding a computer / laptop to the installment, giving you wireless control from the VE829R. Infrared (IR) pass-through enables wireless control of your source devices and helps consolidate your HD A/V electronics, such as a DVDs / Blu-ray players, DVRs / Cable boxes, Game consoles and computers allowing you to design your own custom entertainment.
Product Features
- Wireless transmission of full uncompressed HD videos up to 30m* for two HDTVs
- Allows you to switch and independently select any of 5 sources (4 x HDMI connectors, 1 x component connector) between 2 HDTVs
- Supports full uncompressed HD, 1080P, 3D content and 5.1 channel digital audio
- Superior video quality - 480P, 720P, 1080i, 1080P
- USB HID ports on Transmitter and Receiver units enable wireless keyboard connectivity to control attached computers/laptops
- Based on WHDI technology - Low latency < 1 ms
- HDMI (3D), HDCP compatible
- No software or driver installation needed
Package Includes
- 1x VE829T 5x2 HDMI Wireless Transmitter
- 1x VE829R 5x2 HDMI Wireless Receiver
- 2x Remote Controls with batteries
- 1x Component Adapter Cable
- 1x IR Blaster Cable (Transmitter)
- 1x IR Sensor Extender Cable (Receiver)
- 2x Power Adapter
- 1x HDMI Cable
- 1x User Instructions
* Distance may vary depending on the actual environment; solid objects such as steel, concrete, or brick may cause interference and shorten the transmission distance.
Product Specifications
| Video Input | |
| Interfaces | VE829R: N/A VE829T: 4 x HDMI Type A Female; 1 x Component Video Female |
| Impedance | VE829R: N/A VE829T: 100 Ω |
| Max Distance | VE829R: N/A VE829T: 1.8 m |
| Video Output | |
| Interfaces | VE829R: 1 x HDMI Type A Female VE829T: 1 x HDMI Type A Female |
| Impedance | VE829R: 100Ω VE829T: 100Ω |
| Video | |
| Max Data Rate | VE829R: 6.75 Gbps (2.25 per Chan.) VE829T: 6.75 Gbps (2.25 per Chan.) |
| Max Pixel Clock | VE829R: 225 MHz VE829T: 225 MHz |
| Compliance | VE829R: HDMI (3D); HDCP Compatible VE829T: HDMI (3D); HDCP Compatible |
| Max Resolutions/Distance | VE829R: Up to 1080p@30m VE829T: Up to 1080p@30m |
| Audio | |
| Input | VE829R: N/A VE829T: 4 x HDMI Type A Female; 1 x Component Stereo Audio Female |
| Output | VE829R: 1 x HDMI Type A Female VE829T: 1 x HDMI Type A Female |
| Control | |
| IR | VE829R: 1 x 2.5mm Mini Stereo Jack Female VE829T: 1 x 2.5mm Mini Stereo Jack Female |
| Power | |
| Connectors | VE829R: 1 x DC Jack (Mini USB) VE829T: 1 x DC Jack |
| Consumption | VE829R: 5V DC, 6.7W VE829T: 5V DC, 9.5W |
| Environmental | |
| Operating Temperature | VE829R: 32°-104°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | VE829R: Plastic VE829T: Plastic |
| Weight | VE829R: 0.9 lbs (0.41 kg) VE829T: 1 lbs (0.45 kg) |
| Dimensions L x W x H | 9.21 x 3.8 x 1.28 in. (23.40 x 9.65 x 3.25 cm) |
