Control KVM on 16 computers with high-resolution WUXGA video and OSD
VNET+16P
Save $154.32
The SmartAVI VNET+16PS is a 16-Port Cross-platform WUXGA KVM that controls 4 computers, PC or MAC, on one display with USB keyboard, mouse and stereo audio. Includes: VNET+16P & PS5VD2A.
Features:
- Supports Mac, PC, Linux and Sun
- Supports high resolution 1920x1200 60Hz WUXGA
- KVM control of 16 computers, rack mountable
- Uses combo KVM cable for consolidated connectivity
- Supports USB 1.0/1.1 and PS/2 keyboard and mouse with full emulation
- Front panel tactile switches with LED status indicator
- Includes OSD (On Screen Display)
- Supports auto-scan mode for discovery
- Easy control and access
Aplications:
- Government Operations
- Defense Applications
- Security Control Rooms
- Corporate Communications
- Server Operations
- Medical Campuses
- Airports
- Production Studios

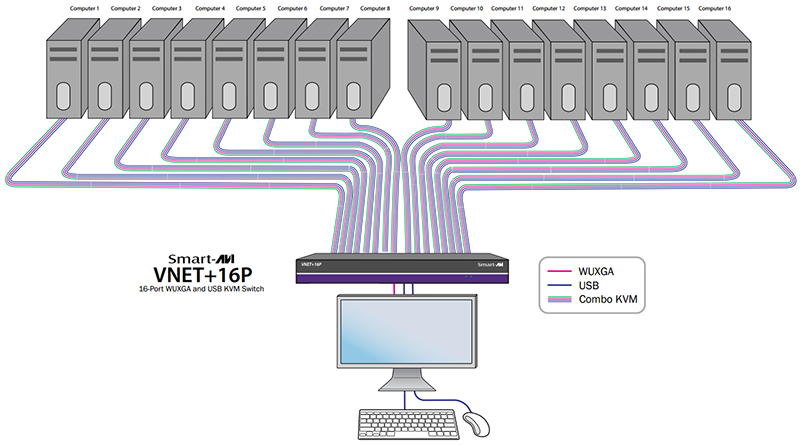

Diagram
Specifications:
| Video | |
| Format | VGA RGB Analog |
| Resolution HDTV | Up to 1600x1200 @85Hz, 2048x1536 @60Hz |
| Input Interface | (16) HD-15 Male |
| Output Interface | (1) HD-15 Female |
| H Frequency Range | 30-95 kHz |
| V Frequency Range | 50-180 Hz |
| USB | |
| Signaling | USB 1.1 and 1.0 |
| Input Interface | (16) HD-15 Female VGA/USB |
| Output Interface | (2) USB Type A, (2) PS/2 |
| Firmware Update | (1) Mini USB |
| Control | |
| Front Panel | Tact Switches |
| OSD | On Screen Display |
| Optical | |
| Power | External 100-240 VAC/5VDC4A @20W |
| Dimensions | 17.3" W x 1.5" H x 6.1" D |
| Weight | 5 lbs |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temp | 32-131°F (0-55 °C) |
| Storage Temp | -4-185 °F (-20-85 °C) |
| Humidity | Up to 95% |
UPC 813280020336
EAN 0813280020336
