NTI VOPEX 16-Port S-Video & Audio Splitter/Extender via CAT5

VOPEX-C5SVA-16

$775.00

Discontinued
For upgrade or replacement options: Contact Us

The NTI VOPEX¨ VOPEX-C5SVA-16 S-Video and Audio Splitter/Extender simultaneously displays high-resolution video from one computer source to 16 remote locations via Cat5 UTP cable. The VOPEX-C5SVA-16 is a real-time system which supports remote s-video devices up to 600 feet from the computer as well as local display.  The VOPEX S-Video Splitter/Extender system has two components: the VOPEX-C5SVA-16 S-Video broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX ST-C5SVA-R-600 remote unit (sold separately) for each remote monitor. The units are interconnected by CAT5 cable.

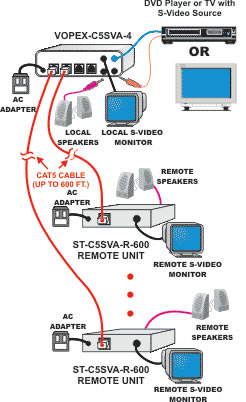

NTI VOPEX S-Video  & Audio Splitter/Extender System Diagram
NTI VOPEX S-Video & Audio Splitter/Extender System Diagram

NTI VOPEX-C5SVA-16 Features:

  • Broadcast real-time s-video or audio/s-video to multiple display locations.
  • Accompanying audio can be broadcast to self-powered stereo speakers at the remote unit as well as each remote location.
  • Supports maximum s-video resolution - 800x600 at distances up to 600 feet.
  • Easily expandable. Add remote units as you add monitors
  • Inexpensive CAT5 cable replaces bulky video cables.
  • A pure hardware solution - no software conflicts.

NTI VOPEX-C5SVA-16 Details:

  • Video Input
    • Supports computers and video devices with s-video output.
    • Female 4-pin miniDIN connector.
    • Input impedance: 75 Ohms.
    • Maximum input levels for s-video: 1.45 p-p.
    • Video is DC coupled.
  • Video Output
    • Female 4-pin miniDIN connector.
    • Compatible with s-video.
    • 800x600 video resolution.
    • Output impedance: 75 Ohms.
    • Maximum output level for s-video: 1.45Vp-p
  • Cables
    • 3-foot s-video cable included.
    • 3-foot audio cable included with unit with audio option.
    • CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

NTI VOPEX-C5SVA-16 Specifications:

Mechanical
Height 2.5 in. (6.3 cm.)
Width 8.5 in. (21.5 cm.)
Depth 6 in. (15 cm.)
Weight 2.5 lbs. (1.1 kg.)
Environmental
Operating Temperature 32°F to 100°F (0°C to 38°C)
Storage Temperature -20°F to 140°F (-30°C to 60°C)
Relative Humidity 17 to 90% non-condensing RH
Power
Operating Voltage 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Consumption 20W
MTBF 64,412 hrs
Audio
Audio Jack 3.5mm female stereo
Frequency response 20 Hz to 20 kHz, +/- 1 dB
Signal-to-Noise Ratio (SNR) 76 dBA
Total Harmonic Distortion and Noise (THD+N) 0.017%
Stereo crosstalk -70 dB
Input impedance 10k Ohms
Maximum I/O levels for audio 3.1 Vp-p (line level)
Line level output supports multimedia speakers
Regulatory Approvals CE
