NTI 4-port DVI/HDMI USB KVM Splitter

VOPEX-USBH-4

$585.00$537.93
Save $47.07
FREE Shipping on orders over $100

The NTI VOPEX-USBH-4 DVI/HDMI USB KVM splitter with built-in USB hub allows up to four users (four USB keyboards, USB mice and DVI/HDMI monitors) to access one USB computer and up to three USB devices (printers, scanners, security cameras, etc.).

NTI VOPEX-USBH-4 Features and Benefits:

  • Compatible with USB computers (PC, SUN, MAC)
  • Built-in hub for multiple USB devices.
  • Available with optional stero audio.
  • Access one computer from multiple locations.
  • Multiple users can enter data into the same program.
  • Supports HDTV resolutions to 1080i and computer resolutions to 1920x1200.
  • Compliant with USB 2.0 (low/full speed) standards.
  • Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 standards.
  • Supports Plug-n-Play specifications.
  • High quality, rugged steel construction with durable, powder-coat finish.

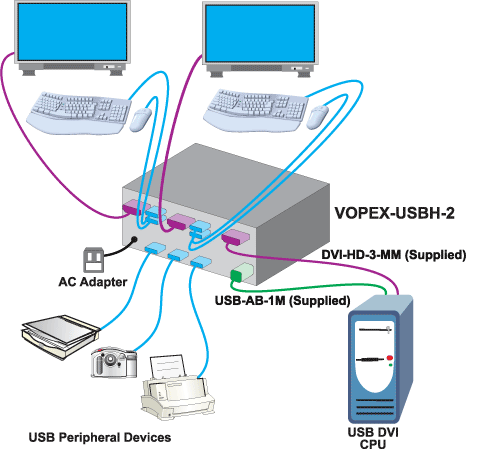

NTI VOPEX-USBH-2 Diagram
NTI VOPEX DVI/HDMI USB KVM Splitter Diagram
(VOPEX-USBH-2 depicted here)

NTI VOPEX-USBH-4 Package Content:

  • 1 VOPEX-USBH-4 4-port DVI/HDMI USB KVM Splitter
  • 1 USB-AB-1M-ST 1m Transparent USB A-B Device Cable
  • 1 DVI-HDMI-3-MM 3 ft. Male-to-Male DVI-to-HDMI Video Cable
  • 120 or 240VAC @ 50 or 60Hz-5VDC/6.0A AC Adapter

NTI VOPEX-USBH-4 Specifications:

Mechanical
Width 8.5 in.
Height 2.6 in.
Depth 6.0 in.
Environmental
Operating Temperature 32 to 100°F (0 to 38°C)
Storage Temperature -20 - 140°F (-30 to 60°C)
Operating Humidity 17 to 90% non-condensing RH
Power 110V-220VAC @ 50/60Hz
Host
Connectors HDMI-A; USB Type B
Compatibility USB computer (PC, SUN, Mac) with DVI/HDMI
Monitor
Connectors HDMI-A
Resolution Maximum 1080i HDTV; 1920 x 1200 DVI
Video Compliance HDMI 1.2, HDCP 1.1, DVI 1.0
Devices
Connectors USB Type A
Input Peripherals 3 x USB Type A
Approvals RoHS, CE
Question: Is there any software that has to be installed on 4 Port Vopex kvm splitter?
Answer: Thanks for reaching out to us.

The VOPEX-USBH-4 Supports Plug-n-Play specifications.

Please let me know if you have any other questions!
