8-Port VGA/Audio Switch with Auto Switching
VS0801A
Save $46.98

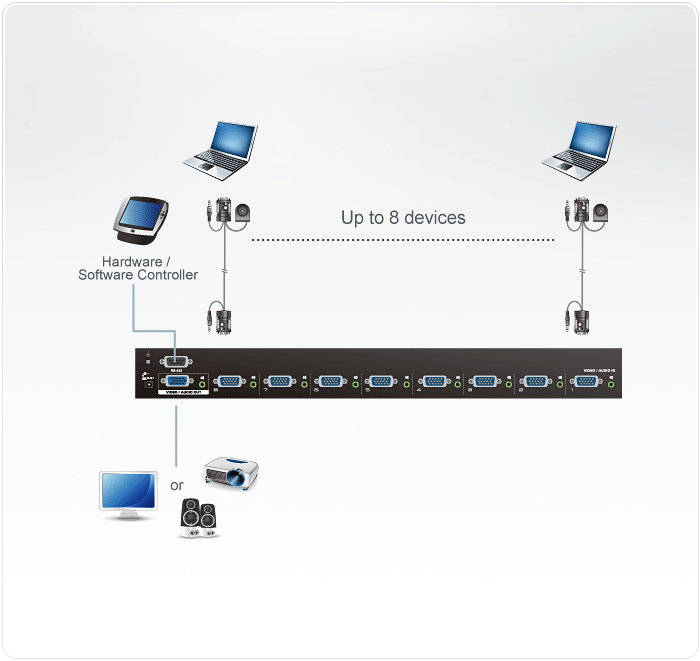

The VS0801A 8-Port VGA Switch with Auto Switching,connecting eight audio/video source notebooks to a single monitor or projector with full audio will enable you to quickly switch between the devices for any presentation occasions where multiple audio/video playing are simultaneously required, such as meeting room, media centers, class rooms etc..
VS0801A built-in bi-directional RS-232 serial port for highend system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the VS0801A to be controlled by secondary systems with advanced functions such as: Power on Detection,Auto Switching and Pushbutton Lock. The IR Remote control convenient front panel pushbuttons, and new port switching VGA cable allow you to quickly and easily toggle between VGA/ Audio sources, while the front panel LEDs indicate the source device at a glance.
Product Features
- Display the video output of up to eight computers on a single VGA display
- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232 commands, IR remote control, or Port Switching cable*
- Supports stereo audio
- Built-in bi-directional RS-232 serial port for high-end system control
- RS-232 Control:
- Power On Detection - if one VGA source is powered off, the VS0801A will automatically switch to the next powered-on source
- Auto Switching - sets the priority for auto switching to a connected port
- Pushbutton Lock - locks use of the front panel pushbuttons
- Supports up to 300MHz bandwidth for optimal video quality
- Superior video quality - up to 2048 x 1536 @ 60Hz
- Long distance transmission - up to 65 m
- Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
- Video Dyna Sync - Exclusive ATEN technology eliminates bootup display problem and optimizes resolution when switching between ports
- Supports Dynamic DDC to monitor and receive updated EDID information from displays
Package Includes
- 1x VS0801A 8-Port VGA Switch with Auto Switching
- 1x IR Remote Control
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Product Specifications
| Video Input | |
| Interfaces | 8 x HDB-15 Male |
| Impedance | 75Ω |
| Max Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDB-15 Female |
| Impedance | 75Ω |
| Video | |
| Max Bandwidth | 300 MHz |
| Max Resolution | Up to 1920 x 1440 |
| Max Distance | Up to 30m |
| Audio | |
| Input | 8 x Mini Stereo Jack Female |
| Output | 1 x Mini Stereo Jack Female |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| Power | |
| Connectors | 1 x DC Jack |
| Consumption | 5.3V DC, 1.01W |
| Environmental | |
| Operating Temperature | VE829R: 32°-122°F (0°-40°C) VE829T: 32°-104°F (0°-40°C) |
| Storage Temperature | VE829R: -4°-140°F (-20°-60°C) VE829T: -4°-140°F (-20°-60°C) |
| Humidity | VE829R: 0-80% RH, Non-Condensing VE829T: 0-80% RH, Non-Condensing |
| Physical | |
| Housing | Metal |
| Weight | 4.63 lb (2.10 kg) |
| Dimensions L x W x H | 17.2 x 6.29 x 1.73 in. (43.70 x 15.98 x 4.40 cm) |
UPC 672792004308
EAN 0672792004308
