Home >> KVM Switch Vendors >> Aten >> ATEN VS162
Share |
VS162 - ATEN VS162 - VS162 - Click To Enlarge


Part # VS162
Sale Price:
Product Description

ATEN VS162 2 Port DVI Video Splitter
The Aten VS162 DVI Video Splitter duplicates and boosts the signals from any four DVI video and audio sources to four DVI displays and audio outputs. They are ideal for any type of broadcasting environment, classrooms, or by power computer users. The Aten VS162 also features audio support and is able to be daisy chained for additional viewing.

ATEN VS162 2 Port DVI Video Splitter Features:

  • Connects computers with DVI graphics to multiple DVI compatible monitors or projectors
  • Fully compliant with DVI-Digital and DVI-Analog
  • Speaker enabled for audio enjoyment
  • Maximize your viewers - Cascadable
  • Maintains highest link video resolution (1600 x 1200)
  • Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors
  • Installs in minutes

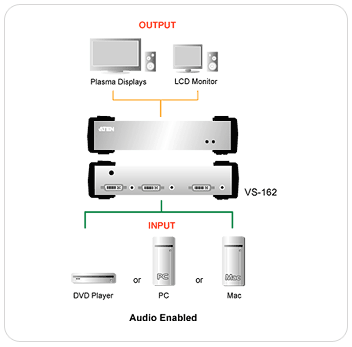

Function Diagram ATEN VS162
ATEN VS162 2 Port DVI Video Splitter Function Diagram

ATEN VS162 2 Port DVI Video Splitter Package Content:
1 x DVI Video Splitter
1 x Power Adapter (DC 5.3V)
1 x User Manual

ATEN VS162 2 Port DVI Video Splitter Specifications:

Width 12.0 in. (30.0 cm)
Height 8.0 in. (20.0 cm)
Length 20.8 in. (53.0 cm)
Case Qty. 5
Video connections
Input 1 x DVI Female
Output 2 x DVI Female
Package Dimensions
Width 4.0 in. (10.0 cm)
Height 4.0 in. (10.0 cm)
Length 11.0 in. (28.0 cm)
Case Metal
Case Wt. 13.6 lb. (6.2 Kg)
Package Wt. 2.3 lb. (1.0 Kg)
Unit Wt. 1.4 lb. (0.6 kg)
Depth 3.5 in. (8.8 cm)
Width 8.3 in. (21.0 cm)
Height 2.2 in. (5.6 cm)
Video Resolution 1600x1200
Power Consumption DC5.3V, 3.4W
Humidity 0~80% RH, Noncondensing
Connectors (Input) 1 x DVI Female, 1 x Earphone Jack Female
Operating Temperature 32F~122F (0C~50C)
Storage Temperature -4F~140F (-20C~60C)
Signal Type DVI-Digital and DVI-Analog
Connectors (Output) 2 x DVI Female, 2 x Earphone Jack Female
