Rose Electronics 2x4 Video Splitter Amplifier, 2 VGA In & 4 VGA Out

VSP-2X4VB

$349.00$302.60
Save $46.40
FREE Shipping on orders over $100

The Rose VSP-2X4VB is a 2x4 Video Splitter Amplifier (2 VGA In and 4 VGA Out).  This Video Splitter was designed to take two video sources and distribute the video to multiple monitors. These monitors can be located as far away as 250 feet using extended distance cables.  The Rose VSP-2X4VB is ideal for use in: classrooms, conference rooms, point-of-sale terminals, trading floors, airports, restaurants, process control areas, and in security systems. You can daisy-chain units together to drive additional monitors if needed.  For control or setting up a presentation, a blanking feature is available that will inhibit the video from displaying on all monitors except port one. This allows the presenter to organize and edit the video before it is distributed to all monitors. On the two input models, an added feature is the built-in A/B switch. This allows you to switch two different video sources to multiple video monitors.  The VideoSplitter is rack mountable with optional 19?, 23?, and 24? rack mount kits.

Rose Video Splitter Features & Benefits:

  • Drives multiple monitors from either 2 computers
  • Internal gain adjustment to increase brightness of monitors
  • Ideal for classrooms, conference rooms, point of sale presentations, trading room floors, process control, security systems, airports, restaurants, and many other applications
  • Daisy-chain units to one another with VGA male to female cables to drive 64 or more videos
  • Designed to drive long cables with high capacitance
  • Monitors can be located up to 250 feet away from your CPU with optional extended distance cables
  • Uses VGA style HD15 connectors, male for CPUs, female for monitors
  • Optional A/B switches allow you to switch from two different CPUs
  • Output enable turns off all but port one, so that you can hide the video output while still being able to use one output

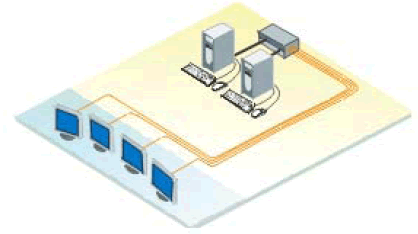

Rose Video Splitter Application Diagram
Rose Video Splitter Application Diagram

Rose VSP-2X4VB Specifications:

Mechanical
Height 2.10 in. (5.33 cm.)
Width 8.85 in. (22.50 cm.)
Depth 4.90 in. (12.45 cm.)
Weight 3 lbs. (1 kg.)
Environmental 32F - 131F (0- 55 C),
0%-80% non-condensing RH
Power
Input Power External adapter or
optional 90-240 VAC Auto-switching
Output Power 17 VAC CT, 700 ma
Connectors
Power DIN5
Video In HD15 Male
Video Out HD15 Female
Video
Bandwidth 350 MHz
Sync Vertical/Horizontal, supports composite
sync and sync on green
Chassis Electro-galvanized steel, painted
Controls Power On/Off Switch, 4-Position Dip
Switch, A/B source switch
Indicators Power LED (green)
