1U 19" Widescreen SUN LED LCD Console Drawer
WS119
$917.00
The WS119 is a 1U 19" Widescreen SUN rackmount LCD monitor drawer. CyberView provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
Drawer Features and Dispaly Benefits
- 1U 19" widescreen LCD console drawer
- Direct Support for SUN Micro 1152 x 900 native resolution
- Secure remote user access across the world wide web

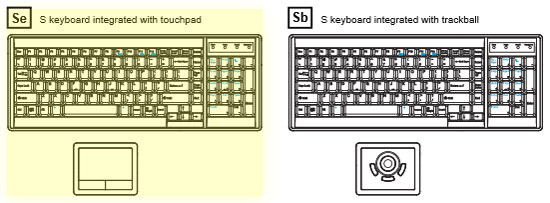

- 104-key keyboard with SUN hotkeys
- Green LED-backlit panel technology
- New enhanced aesthetics with molded front handle
- Short depth design of 460mm ( 18.1" ) only
- Front USB port for device access ( USB Hub KVM only )
- 2 post rack mounting available
For HDMI, S-video, DVI-D, DC power options please call 1-877-586-6654.
DF117 Specifications:
| Mechanical | |
| Height | 1.73 in. (4.5 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 18.1 in. (46.0 cm.) |
| Weight | 25.0 lbs. (11.5 kg.) |
| Package Dimensions (HxWxD) | 23.2 x 31.8 x 5.5 inch (590 x 808 x 140 mm) |
| Package Weight | 36.0 lbs. (16.3 kg.) |
| Environmental | |
| Operating Temperature | 0 to 50°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Screen | |
| Display Size | 19" widescreen TFT |
| Resolution | 1152 x 900 (Direct), 1140 x 900 (Native) |
| Brightness (cd/m2) | 250 |
| Colors | 16.7 M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing angle (H/V) | 160° x 160° |
| Active area (mm) | 408 x 255 |
| Signal Input | VGA or DVI-D |
