CyberView High Res LCD Console Drawer w/ Sun Keyboard - Trackball
X117Sb
Save $152.00
The X117sb is a 1U Rackmount SUN Ultra High Resolution LCD Console Drawer with Trackball. This rackmount LCD console has features such as a molded front handle and Picture-in-Picture.

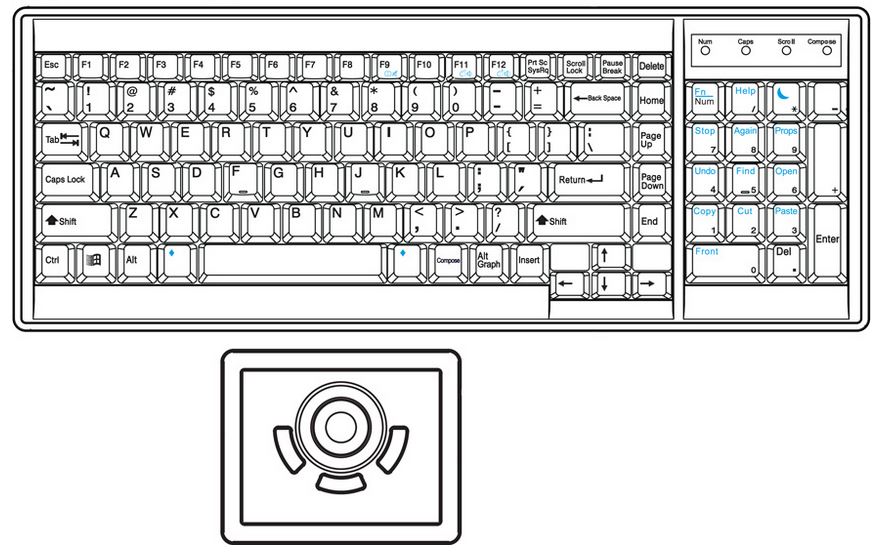

The X117sb Keyboard
AH X117sb LCD Console Benefits
- 1U 17" widescreen LCD console drawer with VGA, DVI-D w/ speaker
- 1920 x 1200 native WUXGA Ultra high resolution
- PIP & Picture by Picture viewing efficiency
- 104-key SUN keyboard with trackball
- New enhanced aesthetics with molded front handle
- 2 post rack mounting available
AH X117sb Specifications:
| LCD Panel | |
| Size | 17.1" widescreen TFT |
| Max Resolution | 1920 x 1200 |
| Brightness | 210 (cd/m2) |
| Backlight | LED |
| Colors | 16.7 M, 8-bit |
| Contrast Ratio | 600 : 1 |
| Viewing Angle | 130° x 110° |
| Active Area | 367 x 230 |
| MTBF | 20,000 |
| Signal Output | VGA or DVI-D |
| Environmental | |
| Operating Temperature | 32 to 131°F (0-55°C) |
| Storage Temperature | -4 to 140°F (-20-60°C) |
| Operating Humidity | 20~90%, non-condensing |
| Storage Humidity | 5~90%, non-condensing |
| Operating Altitude | 16,000 ft. |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Mechanical | |
| Height | 1.73 in. (44mm) |
| Width | 17.4 in. (441.6mm) |
| Depth | 18.9 in. (480mm) |
| Weight | 24 lbs. (10.8kg) |
| Power | |
| Power Input | Auto-sensing 100 to 240VAC, 50/60Hz |
| Power Consumption | Max. 34W |
| Regulatory | |
| Safety | FCC, CE |
| Environmental | RoHS2, REACH |
